ECM Industries NB-350-30 ILSCO AL MEC (L)350-6 (T)(30)14-6 TUR

Product Description

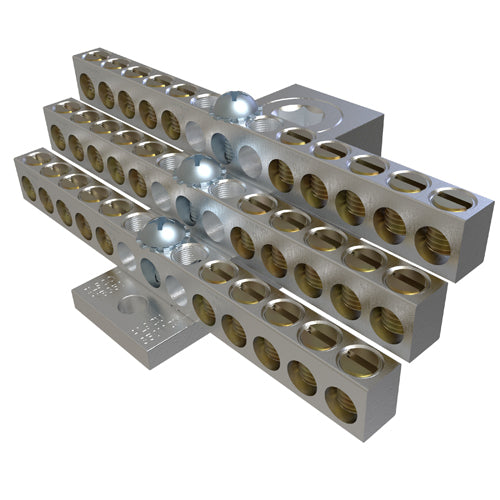

ECM Industries NB-350-30 is a mechanical neutral bar designed for safe and efficient electrical connections. This dual-rated bar showcases a width of 2.5313 inches, length of 4.0938 inches, and height of 1.54 inches. It is rated for 2000 VAC and can accommodate cable tap sizes from 14 to 4 AWG and main cable sizes from 6 AWG to 350 kcmil. The unit has thirty tap connections and two mounting holes, making it versatile for various applications.

• Dual rated for versatility in electrical applications.
• Constructed from strong aluminum with an electro-plated tin finish.
• Suitable for use with both copper and aluminum conductors.

Product Highlights

This mechanical neutral bar supports efficient grounding and bonding in electrical systems, ideal for electricians and contractors.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366969875

Technical Specifications

• Application: For tap connector
• Bar Height: 1.54 inches
• Bar Length: 4.0938 inches
• Bar Width: 2.5313 inches
• Cable Main: 6 AWG to 350 kcmil
• Cable Tap: 14 to 4 AWG
• Finish: Electro-Plated Tin
• Material: Aluminum
• Mounting Hole Quantity: 2
• Series: NB Series
• Standards/Approvals: CSA LR-29601, UL 486A/B, E6207, UR Certified
• Tap Quantity: 30
• Voltage Rating: 2000 VAC
