Ecm Industries Llc 10600 Waterproof Wire Connector 600V 2 Pack

Product Description

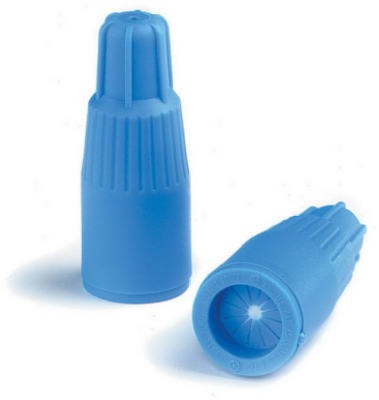

The ECM INDUSTRIES LLC 10600 is a 2-pack of blue DryConn direct bury silicone-filled waterproof wire connectors rated for 600 volts. Each connector measures 13/16 inches by 2 inches and is filled with a dielectric silicone sealant that excludes moisture and prevents corrosion at the connection point. The connector body is rated to 75 degrees Celsius, and the silicone sealant is temperature rated from -45 to 400 degrees Fahrenheit, making these connectors suitable for a wide range of buried and exposed outdoor environments. Electricians use these on low-voltage landscape wiring, irrigation control wiring, and direct bury service runs where a sealed, moisture-resistant splice is required by code.

These connectors are designed for copper-to-copper wire applications in direct burial installations. Typical use cases include underground feeder splices, outdoor lighting circuits, irrigation system wiring, and any application where the splice will be exposed to ground moisture or standing water. The silicone fill eliminates the need for additional waterproofing tape or grease, making the installation faster in the field. These are packaged on a card and sold as a 2-pack, with 6 packs per package quantity.

Key Features

• Silicone-filled interior provides watertight seal for direct bury applications without additional tape or compound
• Rated 600 volts for compatibility with standard branch circuit and low-voltage wiring
• Connector body rated to 75 degrees Celsius; sealant rated from -45 to 400 degrees Fahrenheit
• Accepts copper-to-copper wire range from 22 AWG minimum to 8 AWG maximum
• Blue color coding for easy field identification
• Compact 13/16 inch by 2 inch form factor fits in standard junction boxes and direct bury splice locations

Compatibility

Designed for copper-to-copper wire splices ranging from 22 AWG to 8 AWG in direct bury and outdoor wet-location installations rated up to 600 volts.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC requirements for direct burial splices and wet-location connections. De-energize the circuit completely before making any wire connections. Insert stripped copper conductors fully into the silicone-filled connector and twist to seat the wires and distribute the sealant. Do not use these connectors on aluminum conductors, as the connector is rated for copper-to-copper connections only.
