ECM Industries IPC-500-250 ILSCO 350-500MCM CONN

Product Description

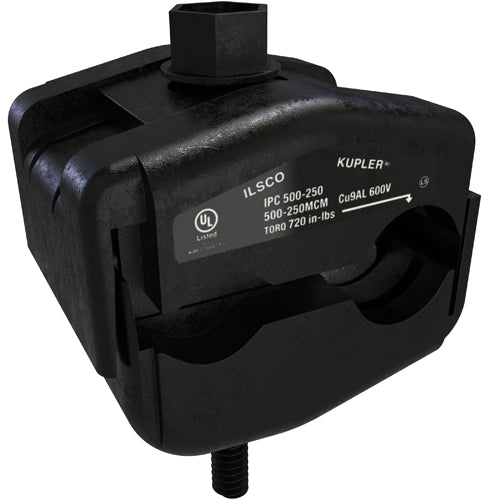

ECM Industries IPC-500-250 is an insulation piercing connector suitable for aluminum and copper conductors ranging from two hundred fifty to five hundred kcmil. This connector is designed for a bolt size of five eighths to eleven sixteenths inches and operates at six hundred volts alternating current. The connector allows for insulation piercing, eliminating the need to strip conductors prior to installation.

• For use with class B or C stranded conductors
• Dual-rated for both aluminum and copper conductor
• Compact design for space-saving

Product Highlights

This connector features a durable body molded from glass-filled nylon. It is designed for easy installation, includes removable end tabs, and has a built-in silicone lubricant to prevent oxidation and moisture.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: IPC-500-250

Technical Specifications

• Conductor Size: 250 to 500 kcmil
• Conductor Type: Aluminum/Copper
• Bolt Size: 5/8 to 11/16 in
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Torque Rating: 55 ft-lb
• Current Rating (Copper): 290 A
• Current Rating (Aluminum): 230 A
