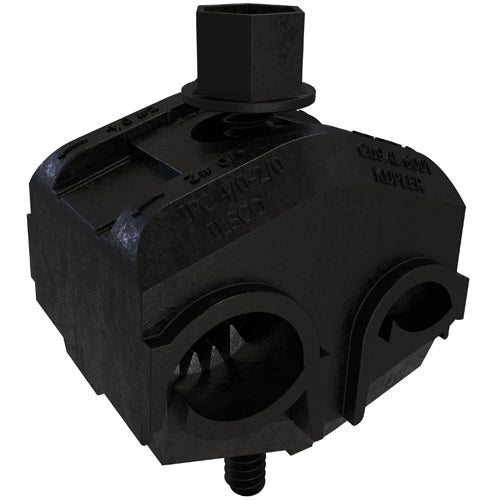

ECM Industries IPC-4/0-2/0 ILSCO IPC (R) 4/0-2 (T) 2/0-6 T UL

Product Description

ECM Industries IPC-4/0-2/0 is an insulation piercing connector designed to connect aluminum and copper conductors. This product can accommodate conductor sizes ranging from two to four aught AWG. It features a secure bolt size of one-half inch and operates at voltages up to six hundred VAC.

• Dual-rated for aluminum and copper conductors
• Removable end tabs for easy installation
• Compact design for space efficiency

Product Highlights

The connector enables insulation piercing without stripping the conductor, allowing faster installation. It is suitable for various applications in electrical systems.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: IPC-4/0-2/0

Technical Specifications

• Conductor Size: 2 to 4/0 AWG
• Conductor Type: Aluminum/Copper
• Bolt Size: 1/2 in
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Torque Rating: 25 ft-lb
• Current Rating Copper: 195 A
• Current Rating Aluminum: 150 A
