ECM Industries IK-8 ILSCO CU MEC (R)10-8 (T)14 UL CSA 78366947002

Product Description

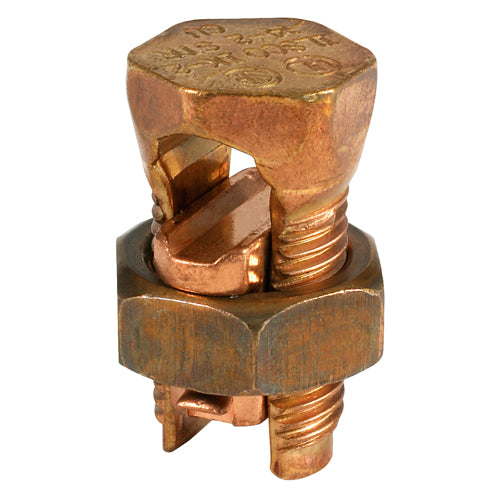

ECM Industries IK-8 is a type IK split bolt connector designed for copper conductors. It connects wires ranging from sixteen to eight American Wire Gauge (AWG). The product measures zero point eight four four inches by zero point three seven five inches and can handle up to two thousand volts alternating current (VAC).

• Manufactured from high strength copper alloy for conductivity
• Suitable for direct burial in earth and concrete
• Precision tooled threads for maximum torque

Product Highlights

The IK-8 split bolt connector is suitable for various copper conductor types including compact, compressed, concentric, and solid copper.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: IK-8

Technical Specifications

• Application: Used in circuits rated thirty-five kilovolts or less with proper high voltage insulation techniques
• Bolt Size: zero point eight four four inches by zero point three seven five inches
• Conductor Size: sixteen to eight AWG
• Conductor Type: Compact/Compressed/Concentric/Solid Copper
• Dimensions: one half inch high by zero point eight four four inches wide
• Material: Copper Alloy
• Specifications: zero point one four five inches split, one half inch hex nut, eighty inch-pounds recommended torque
• Standards/Approvals: CSA Certified, RUS Certified, UL 467
• Temperature Rating: ninety degrees Celsius
• Voltage Rating: two thousand VAC
