ECM Industries IK-6 ILSCO CU MEC (R)8-6 (T)14 UL CSA REA ZZZZ

Product Description

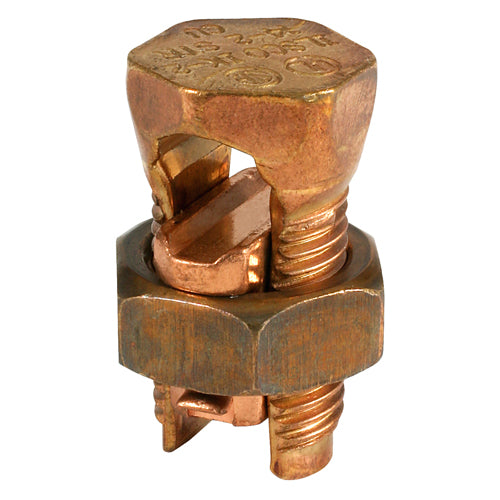

ECM Industries Ik-6 is a split bolt connector designed for use with compact, compressed, concentric, and solid copper conductors. This connector accommodates conductor sizes ranging from ten to six American Wire Gauge (AWG), including sixteen AWG. The product measures zero point five by one point zero four seven inches for the bolt and is rated for two thousand VAC. It includes a hex nut with a torque rating of one hundred sixty-five inch-pounds and operates at a temperature rating of ninety degrees Celsius.

• Rated for use with 10 to 6 AWG and 16 AWG conductors.
• Manufactured from high strength copper alloy.
• Suitable for direct burial in earth and concrete.

Product Highlights

The connector is built to provide high conductivity and enhanced breakage resistance, ensuring durability in various applications.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: IK-6

Technical Specifications

• Application: Used in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques
• Bolt Size: 0.5 x 1.047 in
• Conductor Size: 10 to 6 AWG, 16 AWG
• Conductor Type: Compact/Compressed/Concentric/Solid Copper
• Dimensions: 0.625 in H x 1.047 in W
• Material: Copper Alloy
• Specifications: 0.165 in Split, 5/8 in Hex Nut, 165 in-lb Recommended Torque
• Standards/Approvals: CSA Certified | RUS Certified | UL 467 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Temperature Rating: 90 deg C
• Type: Type IK
• Voltage Rating: 2000 VAC
