ECM Industries IK-3/0 ILSCO CU MEC (R)2 SOL-3/0

Product Description

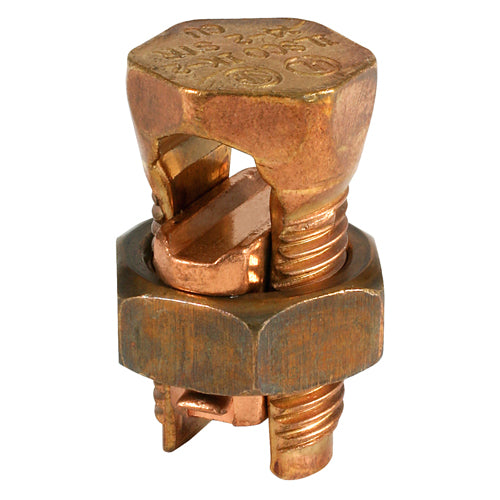

ECM Industries offers the IK-3/0 ILSCO Split Bolt Connector. This product features a design for compact, compressed, concentric, and solid copper conductors ranging from two to three hundred circular mils. The product meets standards for use in circuits rated at thirty-five kilovolts and below with the proper insulation techniques.

• Suitable for direct burial in earth and concrete.
• Manufactured from high-strength copper alloy for optimal conductivity.
• Includes precision tooled threads for applied torque efficiency.

Product Highlights

This connector supports applications where robust electrical connections are necessary. Its durable construction ensures optimal performance, allowing for various installations in electrical wiring systems.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Product Name: IK-3/0 ILSCO CU MEC (R)2 SOL-3/0 UL CSA

Technical Specifications

• Application: Used in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques
• Bolt Size: 7/8 x 2 inches
• Conductor Size: 2 to 3/0 AWG, 12 to 3/0 AWG
• Conductor Type: Compact/Compressed/Concentric/Solid Copper
• Dimensions: 1-1/8 inches H x 2 inches W
• Material: Copper Alloy
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 degrees Celsius
• Standards/Approvals: CSA Certified, RUS Certified, UL 467
