ECM Industries IK-2/0 ILSCO CU MEC (R)2SOL-2/0 (T)14 UL CSA

Product Description

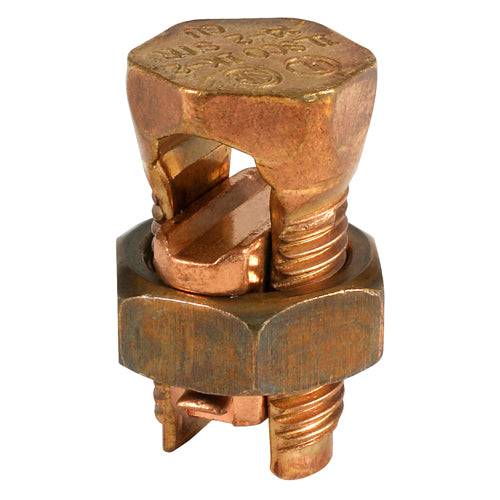

ECM Industries IK-2/0 is a reliable split bolt connector designed for compact and conductive connections. This connector handles conductors from two to two/0 AWG and 14 AWG, making it suitable for various electrical applications. Its construction allows for effective use with solid, compact, compressed, and concentric copper conductors.

• Manufactured from high strength copper alloy
• Suitable for direct burial in earth and concrete
• CSA and UL certified for safe usage

Product Highlights

This connector ensures maximum conductivity and high breakage resistance. It allows for efficient torque application, enhancing the reliability of electrical connections.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: IK-2/0

Technical Specifications

• Application: Used in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques
• Bolt Size: 0.812 x 1.812 inches
• Conductor Size: 2 to 2/0 AWG, 14 AWG
• Conductor Type: Compact/Compressed/Concentric/Solid Copper
• Dimensions: 1 inch H x 1.812 inches W
• Material: Copper Alloy
• Specifications: 0.42 inch Split, 1 inch Hex Nut, 385 in-lb Recommended Torque
• Standards/Approvals: CSA Certified | RUS Certified | UL 467
• Temperature Rating: 90 degrees C
• Voltage Rating: 2000 VAC
