ECM Industries IK-1/0 ILSCO CU MEC (R)4-1/0 (T)14 UL CSA REA

Product Description

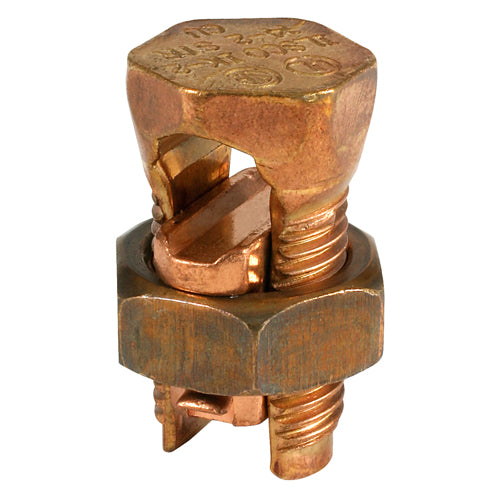

ECM Industries IK-1/0 is a split bolt connector designed for use with various copper conductor types. This connector supports conductors ranging from four to one zero AWG and fourteen AWG, ensuring versatility in applications.

• Manufactured from high strength copper alloy
• Suitable for direct burial
• Rated for 2000 VAC

Product Highlights

The IK-1/0 connector is built for reliability. It accommodates solid, compact, and concentric copper conductors.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366947012

Technical Specifications

• Application: Used in circuits rated 35 kV or less with proper high voltage spacing and insulation techniques
• Bolt Size: 0.75 x 1.641 inches
• Conductor Size: 4 to 1/0 AWG, 14 AWG
• Conductor Type: Compact/Compressed/Concentric/Solid Copper
• Dimensions: 0.875 inches H x 1.641 inches W
• Manufacturer Part Number: IK-1/0
• Material: Copper Alloy
• Specifications: 0.377 inches split, 7/8 inch hex nut, 385 in-lb recommended torque
• Standards/Approvals: CSA Certified, RUS Certified, UL 467, PROP65: Cancer and Reproductive Harm
• Temperature Rating: 90 degrees C
• Type: Type IK
• Voltage Rating: 2000 VAC
