ECM Industries HT-8 HT-8 ILSCO AL CMP (A) 2/0-2 (B) 1-6 CSA

Product Description

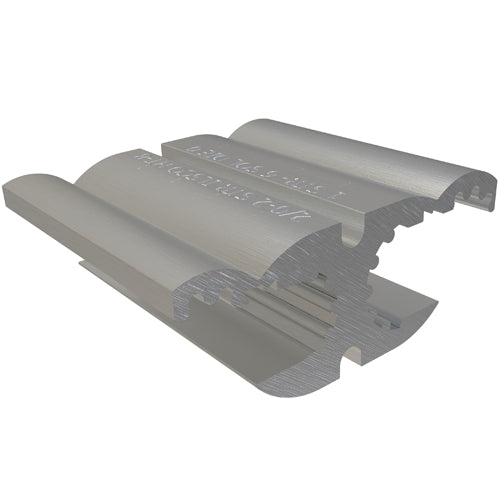

ECM Industries HT-8 is a dual-rated serrated compression H-Tap connector. This product is designed for use with aluminum and copper conductors. The connector accommodates main sizes from 2 AWG to 2/0 AWG and features a tap size of 6 AWG to 1 AWG.

• Supports dual conductor types: aluminum and copper
• Pre-filled with oxide inhibitor for corrosion resistance
• Compatible with industry-standard O and D dies

Product Highlights

The HT-8 connector provides reliable performance for high voltage applications up to 600 VAC. It ensures strong crimping characteristics with high-strength aluminum alloy material.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: HT-8

Technical Specifications

• Application: For ND-58 and ILC-15 crimping tools
• Conductor Type: ACSR/Solid/Stranded Aluminum/Copper
• Main Run Size: 2 to 2/0 AWG
• Tap Size: 6 to 1 AWG
• Dimensions: 1-1/2 in L x 45/64 in W x 1-25/32 in H
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Material: Aluminum
• Standards/Approvals: CSA AP-5465
