ECM Industries HT-5 HT-5 ILSCO AL CMP (A) 4/0-3/0 (B) 2/0-1/0CSA

Product Description

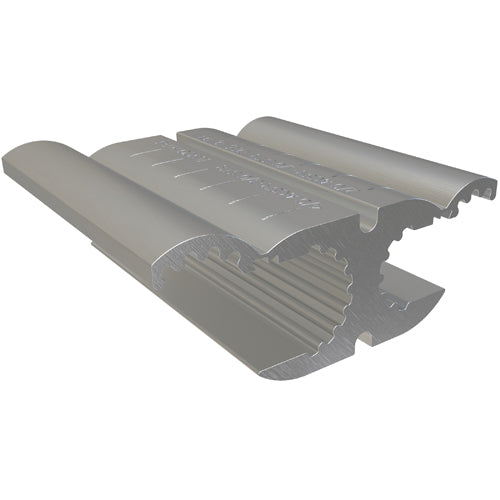

ECM Industries HT-5 is a compression H-tap connector designed for electrical applications. It supports a main run size of 3/0 to 4/0 AWG and tap size of 1 to 2/0 AWG. This connector is suitable for use with multiple conductor types including ACSR, solid, stranded aluminum, and copper. The HT-5 has a voltage rating of 600 VAC and a temperature rating of 90 degrees Celsius.

• Manufactured from high-strength aluminum alloy
• Pre-filled with oxide inhibitor for corrosion resistance
• Dual rated for aluminum and copper conductors

Product Highlights

This connector features a serrated interior for positive mating with cable strands. It is compatible with industry-standard crimping tools. When installed correctly, it provides a reliable connection for various electrical circuits.

Product Information

Standard Information

• Application: For ND-58 and ILC-15 crimping tools
• Manufacturer: ECM Industries

Technical Specifications

• Conductor Type: ACSR/Solid/Stranded Aluminum/Copper
• Dimensions: 2-1/4 inches L x 53/64 inches W x 2-3/8 inches H
• Main Run Size: 3/0 to 4/0 AWG
• Material: Aluminum
• Shape: H with C Groove
• Voltage Rating: 600 VAC
• Temperature Rating: 90 degrees Celsius
• Standards/Approvals: CSA AP-5465
