ECM Industries HT-4 ILSCO AL CMP (A) 3/0-1/0 (B) 3/0-1/0 CSA

Product Description

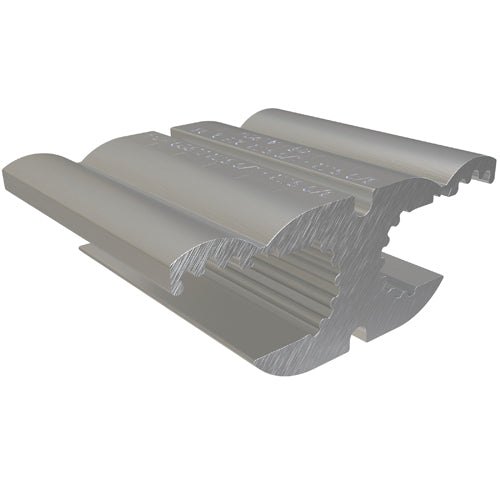

ECM Industries HT-4 is a dual rated serrated compression H-tap connector. This connector is designed for use with 1/0 to 3/0 AWG conductors. It supports both main/run connections and tap connections. The connector is rated for 600 VAC and is compatible with ACSR, solid, stranded aluminum, and copper conductors.

• Made from high strength aluminum alloy for optimal conductivity.
• Suitable for circuits rated 35 kV or less.
• Pre-filled with an oxide inhibitor to resist corrosion.

Product Highlights

This connector ensures a secure connection with its serrated interior, which provides positive mating with cable strands when compressed.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366946126

Technical Specifications

• Application: For ND-58 and ILC-15 crimping tools
• Conductor Type: ACSR/Solid/Stranded Aluminum/Copper
• Dimensions: 1-7/8 in L x 57/64 in W x 2-17/64 in H
• Main Run Size: 1/0 to 3/0 AWG
• Material: Aluminum
• Shape: H with C Groove
• Specifications: D3 Die Index, Program #4
• Standards/Approvals: CSA AP-5465|PROP65: not known to contain any hazardous chemicals
• Tap Size: 1/0 to 3/0 AWG
• Temperature Rating: 90 deg C
• Type: Type HT Dual Rated Serrated
• Voltage Rating: 600 VAC
