ECM Industries HT-2 ILSCO AL CMP (A) 3/0-2/0 (B) 1-6 CSA

Product Description

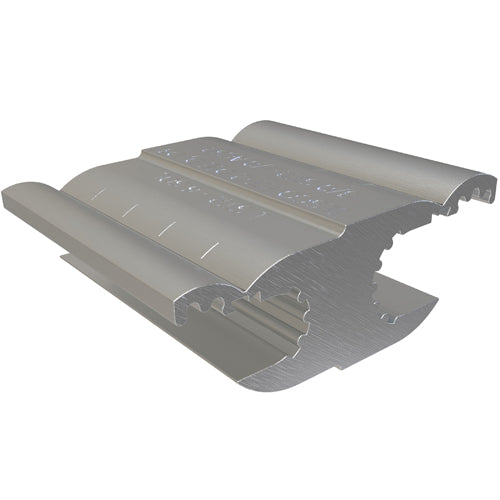

ECM Industries HT-2 is a compression H-tap connector designed for electrical applications. This product is suitable for main sizes from two over zero to three over zero American Wire Gauge (AWG) and tap sizes of six to one AWG. It is constructed from high-strength aluminum alloy for effective conductivity. The HT-2 is designed for circuits up to 600 VAC, making it compatible with both solid and stranded copper and aluminum conductors.

• Compatible with ACSR, solid, and stranded conductors.
• Pre-filled with an oxide inhibitor for corrosion resistance.
• Installs easily with standard O and D dies.

Product Highlights

The HT-2 connector offers strong performance with a serrated interior for secure cable strand mating.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Material: Aluminum

Technical Specifications

• Main Run Size: 2/0 to 3/0 AWG
• Tap Size: 6 to 1 AWG
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Dimensions: 1-7/8 in L x 13/16 in W x 2-3/16 in H
• Die Index: D3
• Manufacturer Part Number: HT-2
