ECM Industries GRC-58 Bronze Ground Rod Clamp

Product Description

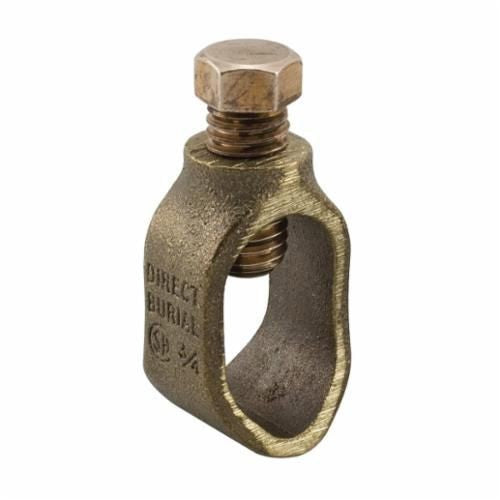

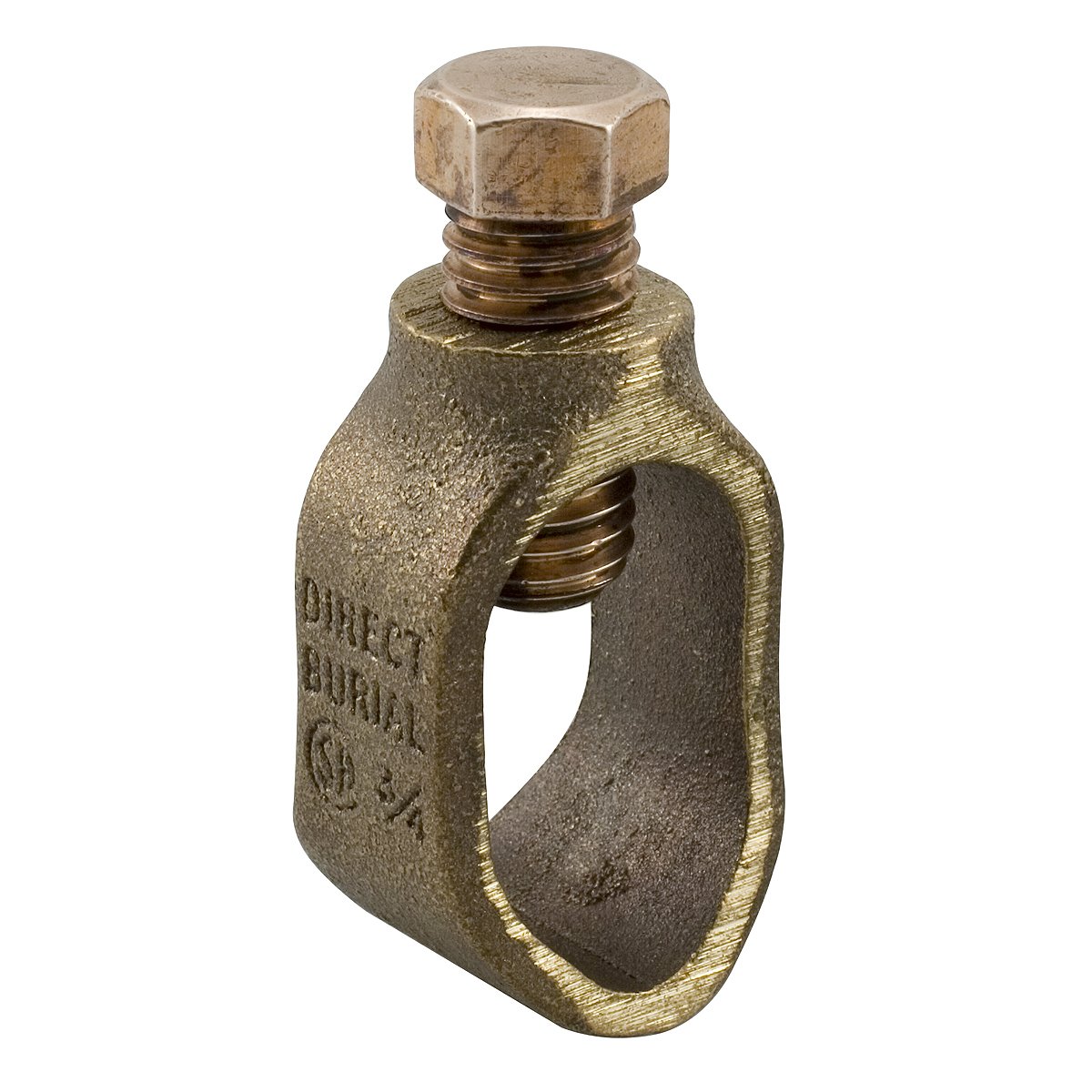

The ECM Industries GRC-58 is a bronze ground rod clamp for connecting ground rods to wires. This clamp has a mechanical connection and one conductor port. It is designed for direct burial and works with a five-eighths inch ground rod. It accommodates stranded copper conductors and features silicon bronze wire binding hardware.

• Mechanical connection with one conductor port.
• Accommodates stranded copper conductors.
• Designed for use with five-eighths inch ground rods.

Product Highlights

This clamp is ideal for direct burial applications and meets industry standards for electrical grounding.

Product Information

Standard Information

• Brand: ECM Industries
• Manufacturer: ECM Industries

Technical Specifications

• MPN: GRC-58
• Catalog Number: GRC-58
• Connection: Mechanical
• Number of Conductors: 1
• Number of Ports: 1
• Conductor Type: Stranded Copper
• Material: Bronze
• Wire Binding Hardware Material: Silicon Bronze
• Ground Rod Size: 5/8 inch
• Direct Burial: Yes
• UL File Number: E34440
• CSA File Number: LR-29601
• UL Specification: UL 467 Listed
• CSA Standard: C22.2 No. 65-03
• Conductor Range with Ground Rod: 2 Str - 8 Str
• Wire Orientation: Parallel
• Drive Size Main: 5/8
• Drive Type Main: External Hex
• Height: 1.534 inches
• Length: 0.938 inches
• Weight: 0.277 pounds
• Width: 0.893 inches
• Connector Finish: Bright Dip
• Wire Binding Screw Size: 7/16
