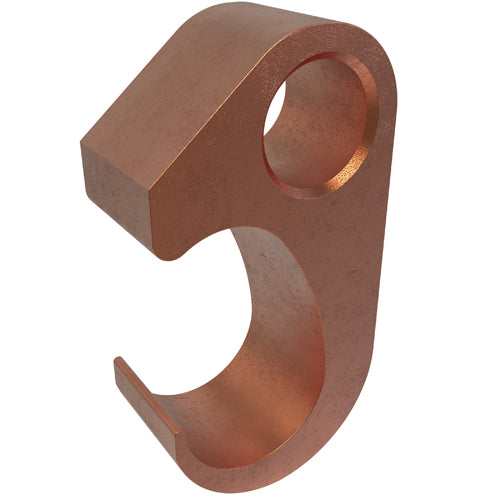

ECM Industries GGC-7 ILSCO CU CMP (R)250-500 (T)3/0-250 B UL 78366926062

Product Description

ECM Industries GGC-7 is a grounding grid tap connector designed for use with conductors ranging from two hundred fifty to five hundred kcmil. This connector accommodates rod sizes from five eighths to three quarters of an inch. It is made from high-strength copper to ensure reliable conductivity.

• Compatible with copper conductors
• Features a voltage rating of six hundred VAC
• Non-hazardous installation, usable in all weather

Product Highlights

The GGC-7 connector provides versatile solutions for grounding and bonding applications. It is pre-filled with DE-OX to prevent corrosion, and it allows for simple rotation for easy alignment during installation.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: GGC-7

Technical Specifications

• Application: For grounding and bonding for direct burial in earth or concrete
• Conductor Size: 250 to 500 kcmil
• Dimensions: 2.6 in H x 0.75 in W
• Material: Copper
• Rod Size: 5/8 to 3/4 in
• Specifications: 600 VAC Voltage Rating
• Standards/Approvals: CSA LR5465|UL 667P/467/E34440|PROP65: it is not known to contain any chemicals associated with this regulation
• Type: Type GGC
