ECM Industries ELT-1 ILSCO CU CMP (R)6-2 (T)6-2 B UL CSA 78366925730

Product Description

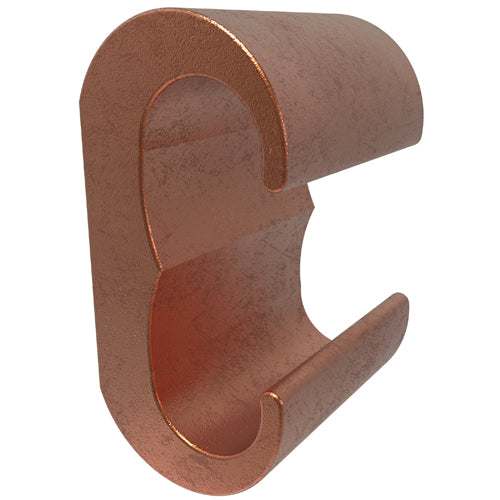

ECM Industries ELT-1 is a compression connector designed for solid and stranded copper conductors. This connector works with a range of wire sizes, from 6 to 2 American Wire Gauge (AWG) for both main and tap connections. The product ensures maximum conductivity due to its copper alloy construction.

• Clearly marked with wire size for easy identification.
• Suitable for grounding and bonding applications.
• Flexibility in application with compatibility for ILD-C tools.

Product Highlights

The ELT-1 compression connector is optimized for use in electrical systems requiring reliability and performance.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: ELT-1

Technical Specifications

• Application: For grounding and bonding for direct burial in earth or concrete
• Conductor Type: Solid/Stranded Copper
• Dimensions: 3/4 inches in length
• Main Run Size: 6 to 2 AWG
• Material: Copper Alloy
• Shape: E
• Specifications: C (U Type) Die Index
• Standards/Approvals: CSA AP-5465|UL 467/667P/E34440
• Type: Type ELT
• Tap Size: 6 to 2 AWG
