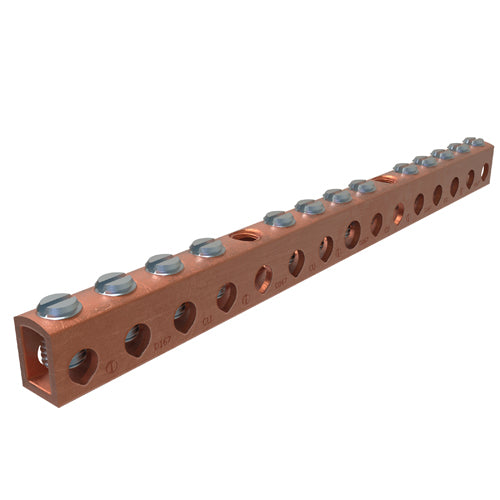

ECM Industries D167-12 ILS 12TAP 6-14STR Copper Ground Bar

Product Description

The ECM Industries D167-12 is a mechanical neutral bar designed for grounding connections. This copper ground bar measures five and fifteen-sixteenths inches in length, eleven thirty-seconds of an inch in width, and three-fourths of an inch in height. It operates at a voltage rating of two thousand VAC.

• Manufactured from durable copper tubing.
• Accommodates various conductor sizes in one connector.
• Includes twelve tap connections and two mounting holes.

Product Highlights

Reliable copper construction ensuring maximum conductivity and compatibility with 14 to 6 AWG cable taps and 14 to 4 AWG cable main.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: D167-12

Technical Specifications

• Application: For tap connector/grounding connector
• Bar Height: 3/4 in
• Bar Length: 5-15/16 in
• Bar Width: 11/32 in
• Cable Main: 14 to 4 AWG
• Cable Tap: 14 to 6 AWG
• Tap Quantity: 12
• Mounting Hole Quantity: 2
• Voltage Rating: 2000 VAC
• Standards/Approvals: UL 486A/486B, UR/CSA Certified
