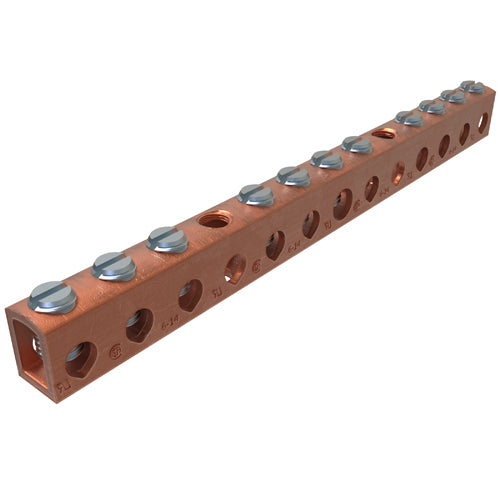

ECM Industries D167-10 ILS 10TAP Ground/Neutral Bar

Product Description

ECM Industries D167-10 ILS 10TAP Ground/Neutral Bar is a mechanical neutral bar designed for effective grounding systems. This product features a length of five and one-eighth inches, a width of eleven thirty-seconds inches, and a height of three-quarters inches. It supports voltage ratings of up to two thousand VAC. The bar accommodates up to ten taps, suitable for cable sizes ranging from fourteen to six AWG for taps and fourteen to four AWG for mains.

• Constructed of high-strength copper
• Includes two mounting holes
• UL 486A/486B compliant

Product Highlights

This neutral bar ensures reliable connections in electrical grounding systems, making it ideal for various applications in commercial and residential settings.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366916156

Technical Specifications

• Application: For tap connector/grounding connector
• Bar Height: 3/4 in
• Bar Length: 5-1/8 in
• Bar Width: 11/32 in
• Cable Main: 14 to 4 AWG
• Cable Tap: 14 to 6 AWG
• Material: Copper
• Mounting Hole Quantity: 2
• Tap Quantity: 10
• Voltage Rating: 2000 VAC
• Standards/Approvals: UL 486A/486B File No. E6207 | UR/CSA Certified | PROP65 compliant
