ECM Industries CSWS-250-38 ILSCO CU CMP 250 KCMIL 13/32 T UL CSA SHORT B

Product Description

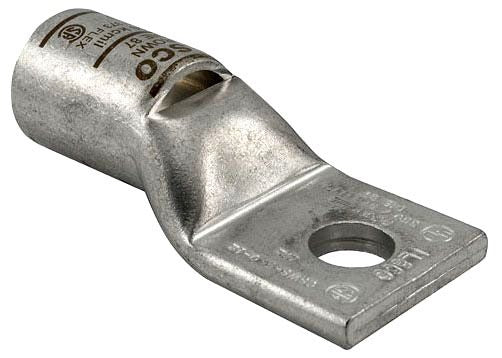

The ILSCO CSWS-250-38 is a lug compression connector designed for connecting flexible copper conductors. This connector accommodates conductor sizes from 1/0 AWG to 250 kcmil. It features a chamfered barrel for easy inspection of cable insertion and comes with a sight hole for added convenience.

• Suitable for grounding and bonding applications
• Electro-tin plated for improved conductivity
• Designed for circuits rated up to 35 kV VAC

Product Highlights

This product is efficient for various electrical applications, providing reliability and high performance. It offers strong crimping characteristics and ensures low contact resistance for optimal connectivity.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: CSWS-250-38

Technical Specifications

• Application: Terminating Connector Applications
• Barrel Size: 0.593 inches ID x 0.75 inches OD x 1.063 inches Length
• Color: Yellow
• Conductor Size: 1/0 AWG to 250 kcmil
• Conductor Type: Flex Copper
• Die Code: ILD-62
• Dimensions: 1.088 inches Width
• Material: Tin Plated Copper
• Mounting Hole Size: 0.406 inches
• Overall Length: 2.469 inches
• Series: CSWS
• Standards/Approvals: NEBS Level 3, UL 453G, UL 486A-486B File No. E6207, CSA File No. LR29601, ECCN EAR99
• Stud Size: 3/8 inches
• Temperature Rating: 90 degrees C
• Tongue Size: 0.875 inches Length x 1.088 inches Width x 0.157 inches Thickness
• Type: 1-Hole
• Voltage Rating: 600 VAC to 35 kV VAC
