ECM Industries CSWS-2/0-38 ILSCO CU CMP 2/0 AWG 13/32 T UL CSA SHORT BAR

Product Description

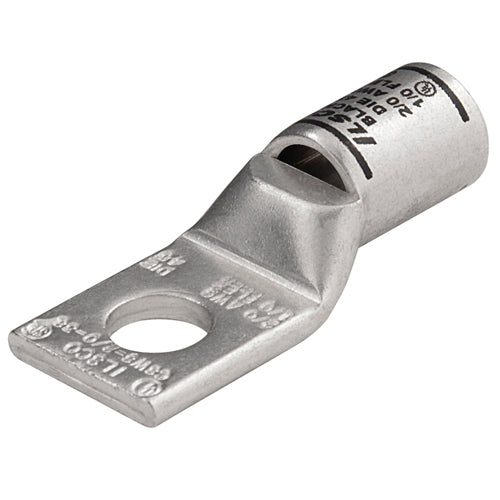

The ILSCO CSWS-2/0-38 is a lug compression connector made for flex copper conductors. It is designed for use with conductors ranging from four to two over zero American Wire Gauge (AWG). This connector features a sight hole for visual inspection, ensuring proper cable insertion.

• For grounding and bonding applications.
• Chamfered barrel assists with visual inspection.
• Suitable for circuits rated 600 VAC to 35 kV VAC.

Product Highlights

This product is suitable for use in various electrical termination applications. It provides maximum conductivity and excellent crimping characteristics.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: CSWS-2/0-38

Technical Specifications

• Application: Terminating Connector Applications
• Barrel Size: 0.437 in ID x 0.562 in OD x 0.75 in L
• Color: Black
• Conductor Size: 4 to 2/0 AWG
• Conductor Type: Flex Copper
• Die Code: ILD-45
• Mounting Hole Size: 0.406 in
• Overall Length: 2.021 in
• Material: Tin Plated Copper
• Voltage Rating: 600 VAC to 35 kV VAC
• Temperature Rating: 90 deg C
• Tongue Size: 0.875 in L x 0.811 in W x 0.125 in THK
• Standards/Approvals: NEBS Level 3, UL 453G, UL 486A-486B File No. E6207, CSA File No. LR29601, ECCN EAR99
