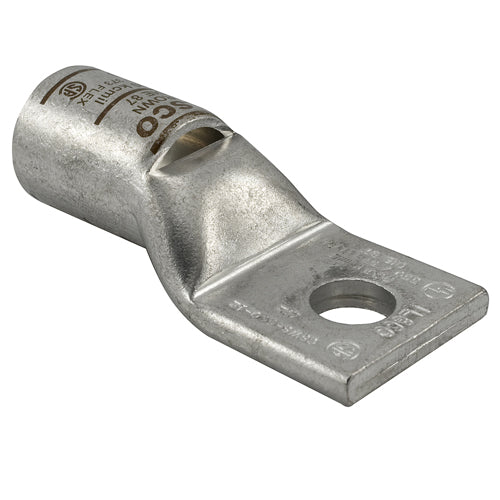

ECM Industries CSWS-1-516 ILSCO CU CMP 1 AWG 11/32 T UL CSASHORT BARREL

Product Description

The ECM Industries CSWS-1-516 is a Lug Compression Connector designed for flex copper conductors of six to one American Wire Gauge (AWG). This component features a sight hole for ensuring proper cable insertion and is ideal for grounding and bonding applications.

• Designed for use with flex copper conductors.
• Rated for 600 VAC to 35 kV VAC.
• Constructed from tin plated copper for enhanced conductivity.

Product Highlights

This connector is suitable for terminating connector applications. It features a standard chamfered barrel, which allows for visual inspection of proper cable insertion. The design simplifies the crimping process while maintaining excellent electrical performance.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: CSWS-1-516

Technical Specifications

• Application: Terminating Connector Applications
• Barrel Size: 0.359 inches ID x 0.468 inches OD x 0.625 inches long
• Color: Green
• Conductor Size: 6 to 1 AWG
• Conductor Type: Flex Copper
• Die Code: ILD-37
• Overall Length: 1.83 inches
• Stud Size: 5/16 inches
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 600 VAC to 35 kV VAC
• Tongue Size: 0.875 inches long x 0.673 inches wide x 0.109 inches thick
• Standards/Approvals: NEBS Level 3, UL 467, UL 486A-486B
