ECM Industries CP-250 ILSCO CU MEC 250-6-3/8 B UL CSA

Product Description

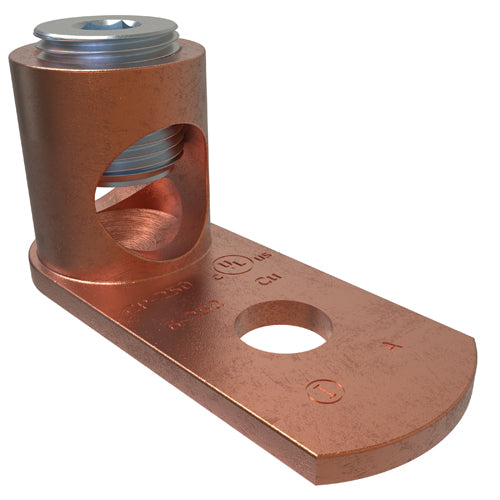

The ECM Industries CP-250 is a compact post connector designed for copper conductors ranging from six AWG to 250 kcmil. It features a three-eighths inch stud and a single bolt hole for secure connections. The connector measures one point nine six eight eight inches long by zero point nine three seven five inches wide and one point zero six two five inches high, making it ideal for installations where space is limited.

• Rated for 2000 VAC
• Constructed from high conductivity copper alloy
• Reusable and application versatile

Product Highlights

This compact design ensures reliable connections while minimizing installation time, suitable for circuits rated 35 kV or less with proper high voltage techniques.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: CP-250

Technical Specifications

• Application: For terminating connector
• Conductor Size: 6 AWG to 250 kcmil
• Conductor Type: Copper
• Dimensions: 1.9688 in L x 0.9375 in W x 1.0625 in H
• Material: Copper
• Number of Bolt Holes: 1
• Specifications: 1/4 in Hex
• Standards/Approvals: CSA File No. LR-29601 | UL 486A-B/UL 453G/UL File No. E6207
• Stud Size: 3/8 in
• Temperature Rating: 90 deg C
• Tongue Size: 1.107 in L x 0.125 in THK
• Tongue Type: Straight
• Type: Type CP Compact
• Voltage Rating: 2000 VAC
