ECM Industries CP-0 ILSCO CP Post Connector, Wire Range 1/0-14, Bolt Size: 5/16

Product Description

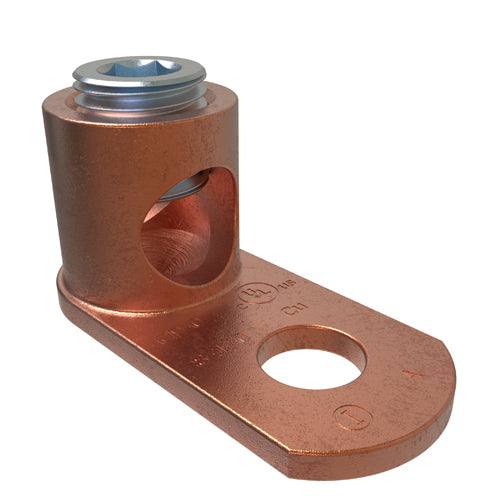

The ILSCO CP-0 is a copper conductor post connector designed for wire sizes ranging from eight to one aught AWG. It includes a five-sixteenths inch bolt size and one bolt hole for secure connections. The connector is built for reliability in electrical applications and ensures effective conductor termination.

• Suitable for copper conductors only
• Temperature rating of ninety degrees Celsius
• Compact design promotes efficient installation

Product Highlights

This connector is ideal for electrical setups requiring a strong and durable connection between conductors. Its compact design reduces installation time while ensuring reliability in copper conductor applications.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: CP-0

Technical Specifications

• Conductor Size: 8 to 1/0 AWG
• Conductor Type: Copper
• Dimensions: 1-1/2 in L x 3/4 in W x 5/8 in H
• Stud Size: 5/16 in
• Tongue Size: 0.842 in L x 0.1 in THK
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 deg C
• Number of Bolt Holes: 1
• Specifications: 1/4 in Hex
• Standards/Approvals: CSA File No. LR-29601, UL File No. E6207/453G/486A/B
• Type: Type CP Compact
