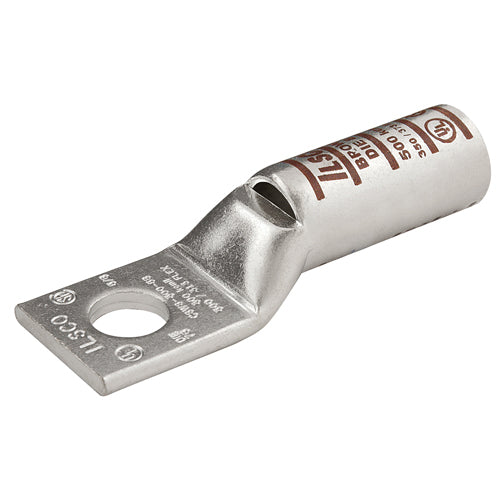

ECM Industries CLWS-3/0-12 CLWS 3/0 AWG 9/16 T UL CSA LONG

Product Description

ECM Industries CLWS-3/0-12 is a lug compression connector designed for terminating copper conductors. This product supports conductor sizes from two to three aught AWG and features a sight hole for easy visual inspection. The connector is constructed from tin plated copper for durability and conductivity.

• Suitable for 600 VAC to 35 kV VAC circuits
• Chamfered barrel ensures proper conductor insertion
• Manufactured from high strength seamless copper tubing

Product Highlights

This connector is ideal for electrical applications requiring a reliable connection with minimal resistance. It reduces inventory needs while offering application versatility.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366963839

Technical Specifications

• Application: Terminating Connector Applications
• Barrel Size: 0.484 in ID x 0.609 in OD x 1.5 in L
• Color: Orange
• Conductor Size: 2 to 3/0 AWG
• Die Code: ILD-50
• Dimensions: 0.885 in W
• Material: Tin Plated Copper
• Mounting Hole Size: 0.562 in
• Overall Length: 3.189 in
• Series: CLWS
• Temperature Rating: 90 deg C
• Tongue Size: 1.25 in L x 0.885 in W x 0.125 in THK
• Voltage Rating: 600 VAC to 35 kV VAC
• Standards/Approvals: NEBS Level 3, UL 453G, UL 486A-486B File No. E6207, CSA File No. LR29601, ECCN EAR99
