ECM Industries CLWD-6-14-58 ILSCO CU CMP W/SYT 6 AWG 9/32-5/8 T UL CSA LON

Product Description

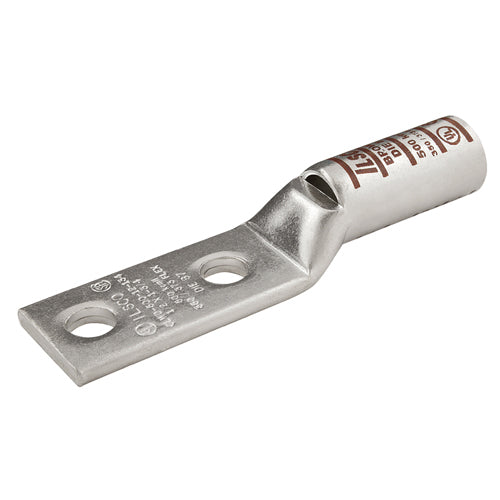

ECM Industries presents the CLWD-6-14-58 ILSCO SureCrimp Lug Compression Connector. This is a 2-Hole connector that is suitable for use with copper conductors of six AWG. It features a die code of I-24 and is rated for 600 VAC. The connector is designed with a 1/4 inch stud and a chambered barrel for optimal performance.

• Compatible with #6 flexible and #6 solid conductors
• Made from seamless copper tubing, electro-tin plated
• Color-coded for easy identification

Product Highlights

This connector maximizes conductivity and ensures excellent crimping characteristics while offering low contact resistance. It enables easy conductor insertion and identifies the correct compression die necessary for proper installation. The design is versatile and helps in reducing inventory needs.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366962943

Technical Specifications

• Application: For terminating connector
• Barrel Size: 0.225 inches ID x 0.312 inches OD x 1.125 inches long
• Color: Blue
• Conductor Size: 6 AWG
• Conductor Type: Copper
• Die Code: I-24
• Overall Length: 2.757 inches
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 600 VAC
• Standards/Approvals: NEBS Level 3 | UL 453G | CSA LR-29601
