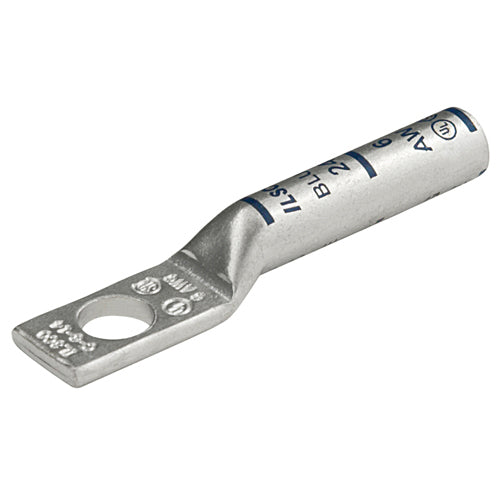

ECM Industries CLNS-6-38 ILSCO CU CMP 6 AWG 13/32 T UL CSA 78366962902

Product Description

ECM Industries CLNS-6-38 is a SureCrimp® lug compression connector designed for terminating connector applications. It is suitable for use with flex copper conductors of six AWG size. The connector features a single hole design and is rated to handle voltage from six hundred VAC to thirty-five kV VAC.

• High strength seamless copper tubing
• Suitable for circuits rated thirty-five kV or less
• Electro-tin plated for improved conductivity

Product Highlights

The CLNS-6-38 offers excellent crimping characteristics and low contact resistance, making it an ideal choice for electricians and HVAC technicians.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: CLNS-6-38

Technical Specifications

• Application: Terminating Connector Applications
• Barrel Size: 0.225 in ID x 0.312 in OD x 1.125 in L
• Color: Blue
• Conductor Size: 6 AWG
• Conductor Type: Flex Copper
• Die Code: ILD-24
• Dimensions: 0.411 in W
• Material: Tin Plated Copper
• Mounting Hole Size: 0.406 in
• Overall Length: 2.195 in
• Series: CLNS
• Spec: 1.187 in L Wire Strip
• Standards/Approvals: NEBS Level 3, UL 467, UL 486A-486B File No. E6207, CSA File No. LR29601, ECCN EAR99
• Stud Size: 3/8 in
• Temperature Rating: 90 deg C
• Tongue Size: 0.875 in L x 0.411 in W x 0.092 in THK
• Type: 1-Hole
• Voltage Rating: 600 VAC to 35 kV VAC
