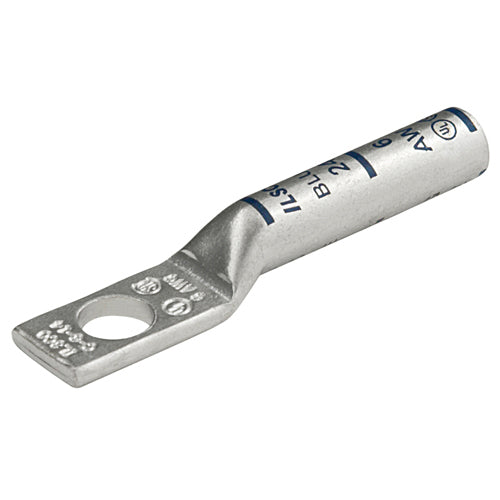

ECM Industries CLNS-4/0-12 ILSCO CU CMP NO SYT 4/0 AWG 9/16 T UL CSA LONG

Product Description

ECM Industries CLNS-4/0-12 is a lug compression connector designed for solid and flexible copper conductors ranging from one to four aught American Wire Gauge (AWG). This connector features a die code of ILD-54 and is rated for voltages from 600 volts alternating current (VAC) to thirty-five thousand VAC, allowing it to be used in a variety of electrical applications.

• One mounting hole for easy installation
• Suitable for 1 to 4/0 AWG conductors
• Tin plated copper for enhanced conductivity

Product Highlights

This connector is ideal for use in electrical systems where robust and reliable connections are necessary. With a long barrel length, it facilitates an effective grip on wires, ensuring durability.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366963966

Technical Specifications

• Type: 1-Hole
• Application: Terminating Connector Applications
• Conductor Size: 1 to 4/0 AWG
• Material: Tin Plated Copper
• Voltage Rating: 600 VAC to 35 kV VAC
• Temperature Rating: 90 deg C
• Overall Length: 3.241 in
• Barrel Size: 0.546 in ID x 0.687 in OD x 1.5 in L
• Tongue Size: 1.25 in L x 0.999 in W x 0.141 in THK
• Stud Size: 1/2 in
• Mounting Hole Size: 0.562 in
