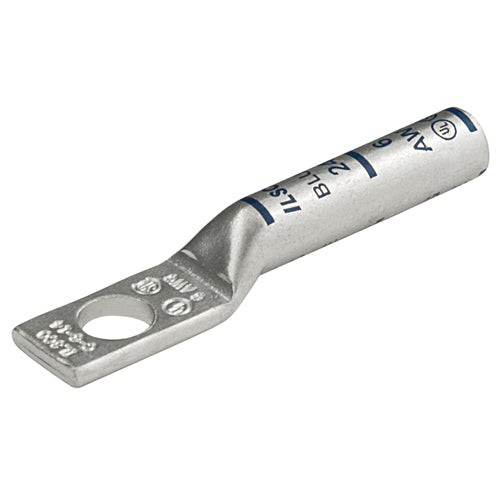

ECM Industries CLNS-3/0-38 CLNS 1-Hole Lug Compression Connector 600 VAC to 35 kV VAC

Product Description

ECM Industries presents the CLNS-3/0-38, a one-hole lug compression connector designed for solid and flexible copper conductors sized two to three aught AWG. This connector is a crucial tool for electrical setups requiring a reliable termination method. It supports a voltage rating of six hundred volts alternating current up to thirty-five thousand volts alternating current, making it versatile for various applications.

• Designed for solid or flexible copper conductors
• Voltage rating from six hundred VAC to thirty-five kV
• Manufactured from tin plated copper for better conductivity

Product Highlights

The ILSCO SureCrimp CLNS-3/0-38 connector features a chamfered long barrel that aids in conductor insertion for improved efficiency. It includes a mounting hole and a robust design optimized for high strength applications.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366963834

Technical Specifications

• Series: CLNS
• Application: Terminating Connector Applications
• Conductor Size: 2 to 3/0 AWG
• Die Code: ILD-50
• Voltage Rating: 600 VAC to 35 kV VAC
• Overall Length: 2.814 inches
• Mounting Hole Size: 0.406 inches
• Temperature Rating: 90 degrees Celsius
• Material: Tin Plated Copper
