ECM Industries CLNS-3/0-12 ILSCO CU CMP 3/0 AWG 9/16 T UL CSA 78366963838

Product Description

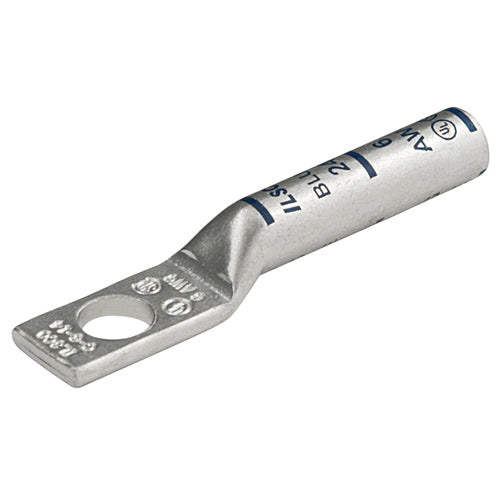

ECM Industries CLNS-3/0-12 is a reliable lug compression connector. This product supports solid and flexible copper conductors, with a range of sizes from two to three zero American Wire Gauge. The connector is suitable for terminating connector applications and is designed to handle a voltage rating of up to thirty-five kilovolts. It features a chamfered long barrel and is compatible with a half-inch stud.

• Voltage Rating: 600 VAC to 35 kV VAC
• Tin Plated Copper construction
• Die Code: ILD-50

Product Highlights

This lug connector ensures easy installation with a design that facilitates low contact resistance and maximum conductivity.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366963838

Technical Specifications

• Application: Terminating Connector Applications
• Barrel Size: 0.484 in ID x 0.609 in OD x 1.5 in L
• Color: Orange
• Conductor Size: 2 to 3/0 AWG
• Conductor Type: Solid/Flex Copper
• Die Code: ILD-50
• Dimensions: 0.885 in W
• Mounting Hole Size: 0.562 in
• Overall Length: 3.189 in
• Temperature Rating: 90 deg C
• Standards/Approvals: NEBS Level 3, UL 453G, UL 486A-486B File No. E6207, UL 467, CSA File No. LR29601, ECCN EAR99
