ECM Industries CLNS-2-38 ILSCO CU CMP 2 AWG 13/32 T UL CSA 78366963306

Product Description

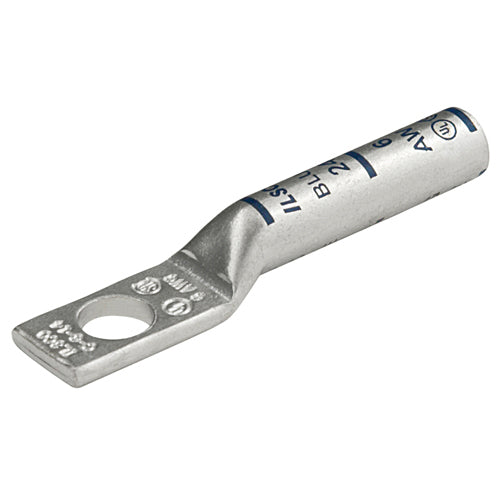

ECM Industries offers the CLNS-2-38 ILSCO SureCrimp Lug Compression Connector. This connector is designed for use with copper conductors ranging from six to two AWG. It features a die code of ILD-33 and is suitable for applications requiring connection to circuits rated up to thirty-five kilovolt alternating current.

• One mounting hole
• Minimum conductor size from six to two AWG
• Tin plated for maximum conductivity

Product Highlights

This connector provides reliable performance and high conductivity for electrical connections, suitable for various wiring applications.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: CLNS-2-38

Technical Specifications

• Application: Terminating Connector Applications
• Barrel Size: 0.312 in ID x 0.421 in OD x 1.125 in L
• Color: Brown
• Conductor Size: 6 to 2 AWG
• Conductor Type: Copper
• Die Code: ILD-33
• Dimensions: 0.599 in W
• Material: Tin Plated Copper
• Mounting Hole Size: 0.406 in
• Overall Length: 2.286 in
• Series: CLNS
• Specifications: 1.187 in L Wire Strip
• Standards/Approvals: NEBS Level 3, UL 467, UL 486A-486B File No. E6207, CSA File No. LR29601, ECCN EAR99
• Stud Size: 3/8 in
• Temperature Rating: 90 deg C
• Tongue Size: 0.875 in L x 0.599 in W x 0.109 in THK
• Type: 1-Hole
• Voltage Rating: 600 VAC to 35 kV VAC
