ECM Industries CLND-600-12-134 ILSCO CU CMP 600 kcmil 9/16-1-3/4 T UL CSA 78366964714

Product Description

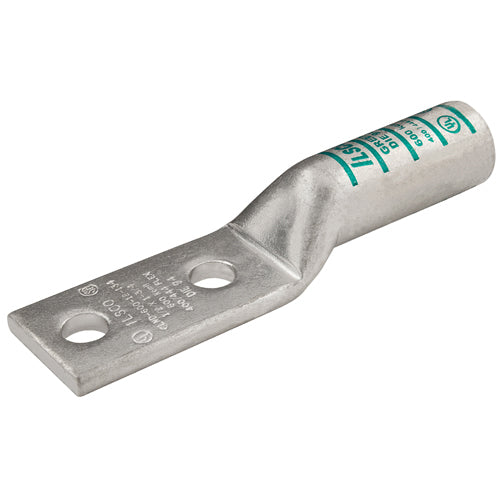

ECM Industries offers the CLND-600-12-134 ILSCO SureCrimp Lug Compression Connector. This connector is suitable for use with flex copper conductors ranging from two hundred fifty to six hundred kcmil. The connector features a two-hole design and has a die code of ILD-94. It functions effectively in applications rated for six hundred VAC to thirty-five kV VAC.

• Two-hole connection for secure fastening
• Suitable for high voltage applications up to 35 kV
• Constructed from tin-plated copper for enhanced conductivity

Product Highlights

This lug compression connector provides reliable connectivity for grounding and bonding applications. Its design reduces inventory needs while maintaining application versatility.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: CLND-600-12-134

Technical Specifications

• Application: Terminating Connector, Grounding and Bonding Applications
• Barrel Size: 0.92 inches ID x 1.187 inches OD x 2.687 inches long
• Color: Green
• Conductor Size: 250 to 600 kcmil
• Conductor Type: Flex Copper
• Die Code: ILD-94
• Dimensions: 1.712 inches wide
• Material: Tin Plated Copper
• Mounting Hole Size: 0.562 inches
• Overall Length: 6.496 inches
• Series: CLND
• Voltage Rating: 600 VAC to 35 kV VAC
• Temperature Rating: 90 degrees Celsius
• Tongue Size: 3 inches long x 1.712 inches wide x 0.267 inches thick
