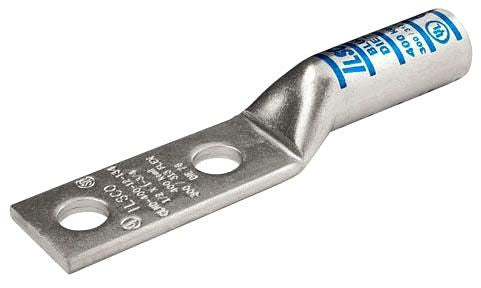

ECM Industries CLND-4-12-134 ILSCO CU CMP NO SYT 4 AWG 9/16-1-3/4 T UL CSA

Product Description

ECM Industries CLND-4-12-134 is a reliable lug compression connector suitable for various electrical applications. This product is a part of the ILSCO SureCrimp series, designed for connecting copper conductors. It accommodates four AWG copper conductors. This connector features a 2-hole design and is approved for use in circuits rated at 600 VAC.

• 2-hole design for secure connections
• Compatible with 4 AWG copper conductors
• Manufactured from high-strength seamless copper tubing

Product Highlights

The CLND-4-12-134 ensures efficient electrical connections with low contact resistance. Its chamfered barrel design provides easy conductor insertion.

Product Information

Standard Information

• Application: For terminating connector
• Series: CLND

Technical Specifications

• Voltage Rating: 600 VAC
• Conductor Size: 4 AWG
• Die Code: I-29
• Overall Length: 4.359 in
• Mounting Hole Size: 0.562 in
• Temperature Rating: 90 deg C
• Mounting Hole Spacing: 1-3/4 in
