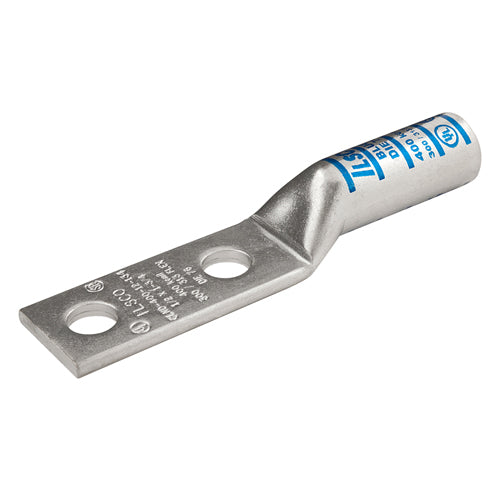

ECM Industries CLND-4/0-12-134 ILSCO CU CMP 4/0 AWG 9/16-1-3/4 T UL CSA

Product Description

ECM Industries CLND-4/0-12-134 ILSCO SureCrimp Lug Compression Connector is designed for connecting flexible copper conductors from one to four aught AWG. This model is compatible with a variety of applications, where secure and reliable connections are essential.

• Versatile conductor sizes ranging from 1 to 4/0 AWG.
• Constructed from high strength seamless copper tubing.
• Suitable for high voltage applications up to 35 kV.

Product Highlights

This connector ensures excellent conductivity and minimizes contact resistance. The long barrel construction facilitates easy crimping while maintaining a strong connection.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Series: CLND

Technical Specifications

• Application: Terminating Connector, Grounding and Bonding Applications
• Barrel Size: 0.546 in ID x 0.687 in OD x 1.5 in L
• Color: Purple
• Conductor Size: 1 to 4/0 AWG
• Conductor Type: Flex Copper
• Die Code: ILD-54
• Overall Length: 4.991 in
• Mounting Hole Size: 0.562 in
• Temperature Rating: 90 deg C
• Voltage Rating: 600 VAC to 35 kV VAC
• Stud Size: 1/2 in
• Standards/Approvals: NEBS Level 3, UL 453G, UL 486A-486B File No. E6207, UL 467, CSA File No. LR29601, ECCN EAR99
