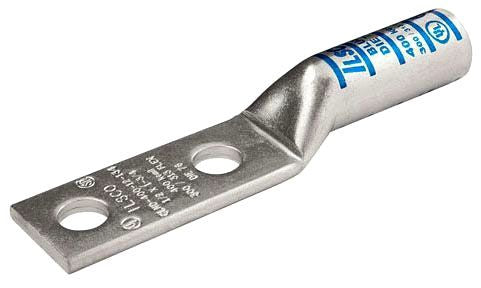

ECM Industries CLND-3/0-38-1 ILSCO CU CMP NO SYT 3/0 AWG 3/8 HOLE 2HOLE LUG

Product Description

ECM Industries presents the CLND-3/0-38-1, a compression connector designed for electrical wiring. This product supports flex copper conductors from 2 to 3/0 AWG. It features a two-hole design for secure connections.

• Voltage rating up to thirty-five kV AC.
• Manufactured from tin plated copper for durability.
• Chamfered long barrel design for efficient crimping.

Product Highlights

The CLND-3/0-38-1 offers high conductivity with low contact resistance, suitable for various electrical applications. It identifies the proper compression die for easy usage.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: CLND-3/0-38-1

Technical Specifications

• Application: Terminating Connector, Grounding and Bonding Applications
• Barrel Size: 0.484 inches ID x 0.609 inches OD x 1.5 inches long
• Color: Orange
• Conductor Size: 2 to 3/0 AWG
• Die Code: ILD-50
• Dimensions: 0.885 inches wide
• Material: Tin Plated Copper
• Mounting Hole Size: 0.406 inches
• Overall Length: 3.876 inches
• Temperature Rating: 90 degrees Celsius
• Tongue Size: 1.937 inches long x 0.885 inches wide x 0.125 inches thick
• Voltage Rating: 600 VAC to 35 kV VAC
