ECM Industries CLND-3/0-12-134 ILSCO CU CMP NO SYT 3/0 AWG 9/16-1-3/4 T UL CS

Product Description

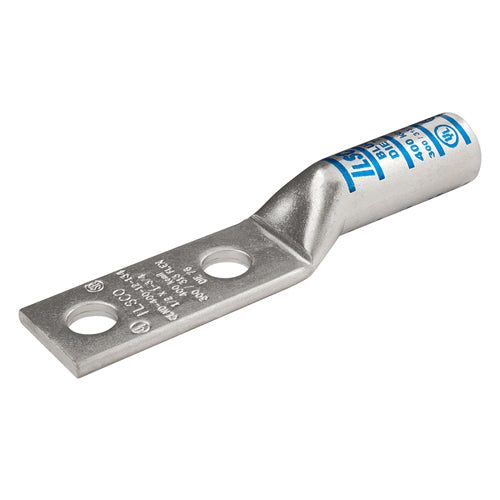

ECM Industries presents the ILSCO CLND-3/0-12-134 lug compression connector. This connector is designed for flex copper conductors. It accommodates conductor sizes from two to three/zero AWG. The connection is secured with a half-inch stud, ensuring reliable performance.

• Application: Terminating Connector for Grounding and Bonding
• Voltage Rating: 600 VAC to 35 kV VAC
• Material: Tin Plated Copper for enhanced conductivity

Product Highlights

This product offers maximum conductivity and low contact resistance, making it suitable for high voltage applications. The chamfered barrel facilitates easy conductor insertion.

Product Information

Standard Information

• Application: Terminating Connector, Grounding and Bonding Applications
• Series: CLND

Technical Specifications

• Barrel Size: 0.484 in ID x 0.609 in OD x 1.5 in L
• Overall Length: 4.939 in
• Conductor Size: 2 to 3/0 AWG
• Tongue Size: 3 in L x 0.885 in W x 0.125 in THK
• Temperature Rating: 90 deg C
• Standards/Approvals: UL 453G, UL 467, UL 486A-486B File No. E6207, CSA File No. LR29601
• Color: Orange
