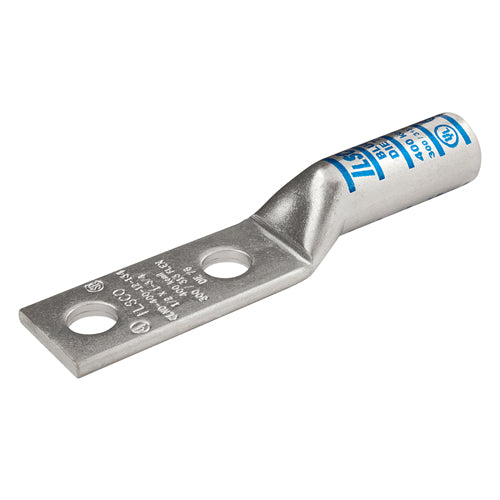

ECM Industries CLND-2-12-134 ILSCO CU CMP 2 AWG 9/16-1-3/4 T UL CSA 78366963418

Product Description

The ECM Industries CLND-2-12-134 is a two-hole lug compression connector designed for use with copper conductors sized from six to two AWG. This connector is built to handle voltages up to 35 kV, making it suitable for a variety of electrical applications.

• Rated for 600 VAC to 35 kV VAC
• Tin plated to enhance conductivity
• Chamfered barrel for easy conductor insertion

Product Highlights

This lug provides excellent crimping characteristics and has a long barrel design for secure connections. It helps reduce contact resistance, ensuring effective operation in electrical systems.

Product Information

Standard Information

• Application: Terminating Connector, Grounding and Bonding Applications
• Manufacturer: ECM Industries

Technical Specifications

• Barrel Size: 0.312 in ID x 0.421 in OD x 1.125 in L
• Conductor Size: 6 to 2 AWG
• Stud Size: 1/2 in
• Color: Brown
• Overall Length: 4.411 in
• Temperature Rating: 90 deg C
• Voltage Rating: 600 VAC to 35 kV VAC
