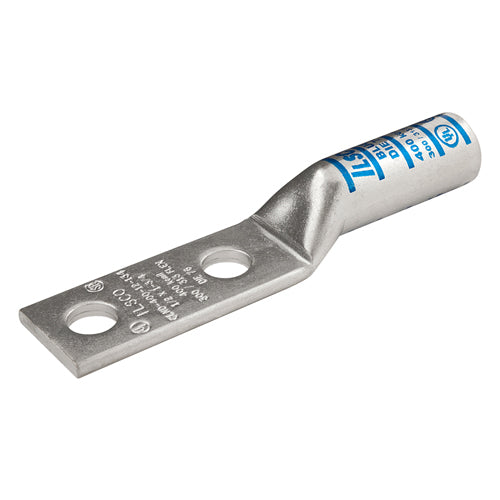

ECM Industries CLND-2/0-12-134 ILSCO CU CMP NO SYT 2/0 AWG 9/16-1-3/4 T UL CS

Product Description

ECM Industries CLND-2/0-12-134 is a lug compression connector designed for flexible copper conductors ranging from four to two-aught AWG. This product is part of the ILSCO® SureCrimp® series, known for its reliability in electrical connections.

• Suitable for use in circuits rated 600 VAC to 35 kV VAC.
• Features a long barrel with chamfered entry for easy conductor insertion.
• Constructed from high-strength seamless copper tubing, electro-tin plated for maximum conductivity.

Product Highlights

This lug compression connector ensures low contact resistance and provides excellent crimping characteristics, making it a versatile option for various electrical applications.

Product Information

Standard Information

• Type: 2-Hole
• Color: Black

Technical Specifications

• Application: Terminating Connector, Grounding and Bonding Applications
• Barrel Size: 0.437 inches ID x 0.562 inches OD x 1.5 inches L
• Conductor Size: 4 to 2/0 AWG
• Voltage Rating: 600 VAC to 35 kV VAC
• Overall Length: 4.896 inches
• Tongue Size: 3 inches L x 0.811 inches W x 0.125 inches THK
• Temperature Rating: 90 degrees C
• Stud Size: 1/2 inches
• Specifications: 1-3/4 inches Mounting Hole Spacing, 1.562 inches L Wire Strip
