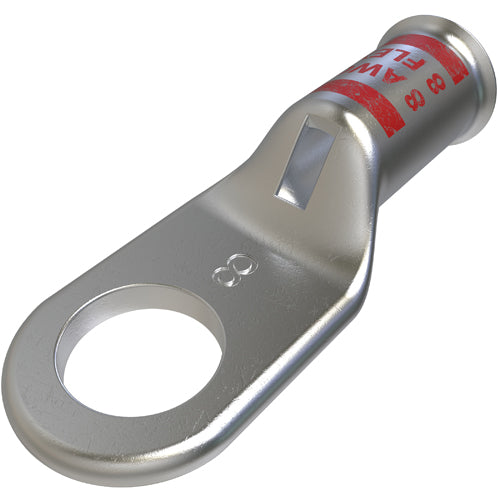

ECM Industries CCL-8-14 CU CMP 8-14 T UL CSA

Product Description

ECM Industries CCL-8-14 is a lug compression connector designed for electrical systems. This product is part of the ILSCO ClearChoice series and is suitable for use with flexible copper conductors. It supports a conductor size of eight AWG. This connector is designed for high-performance applications.

• Designed for 600 VAC to 35 kV VAC applications
• Made from tin plated copper for improved conductivity
• Visual inspection feature for proper cable insertion

Product Highlights

Durability and high conductivity make this connector ideal for various electrical applications.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: CCL-8-14

Technical Specifications

• Application: Terminating Connector Applications
• Barrel Size: 0.185 in ID x 0.256 in OD
• Conductor Size: 8 AWG
• Conductor Type: Flex Copper
• Dimensions: 0.445 in W
• Overall Length: 1.201 in
• Temperature Rating: 90 deg C
• Voltage Rating: 600 VAC to 35 kV VAC
