ECM Industries CCL-6-38 ILSCO CU CMP 6-38 T UL CSA

Product Description

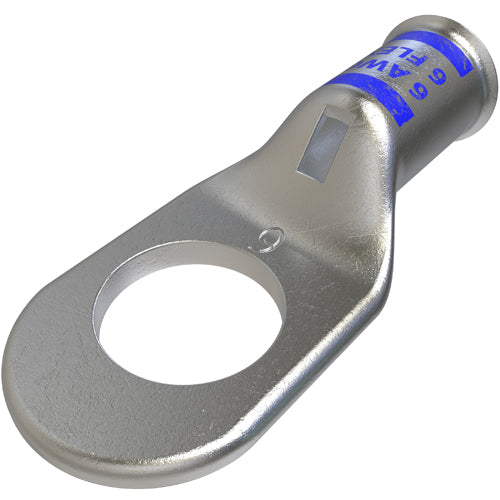

ECM Industries CCL-6-38 ILSCO ClearChoice Lug Compression Connector is designed for flexibility and durability. This product features a '1-Hole Light Duty' design suitable for various applications.

• Application: Terminating Connector Applications
• Conductor Size: 6 AWG
• Voltage Rating: 600 VAC to 35 kV VAC

Product Highlights

This connector provides ease of use due to a flared end for wire insertion. It is manufactured from high-strength seamless copper tubing for improved conductivity and performance.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: CCL-6-38

Technical Specifications

• Application: Terminating Connector Applications
• Barrel Size: 0.232 in ID x 0.299 in OD
• Color: Blue
• Conductor Size: 6 AWG
• Conductor Type: Flex Copper
• Dimensions: 0.598 in W
• Material: Tin Plated Copper
• Overall Length: 1.409 in
• Series: CCL
• Standards/Approvals: UL 486A-486B File No. E6207, CSA File No. LR29601, ECCN EAR99
• Stud Size: 3/8 in
• Temperature Rating: 90 deg C
• Tongue Size: 0.724 in L x 0.598 in W x 0.067 in THK
• Tongue Type: Solid Seamless
• Type: 1-Hole Light Duty
• Voltage Rating: 600 VAC to 35 kV VAC
