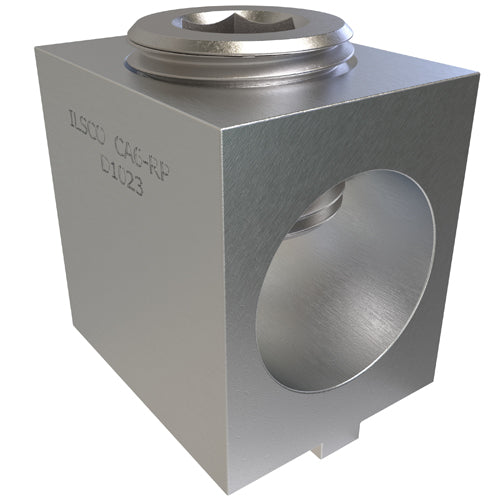

ECM Industries CA6RP CA Series Mechanical Terminal Lug 250-6 1/4-20 T UR

Product Description

ECM Industries CA6RP is a Mechanical Terminal Lug made for aluminum and copper conductors. This lug supports conductors from six AWG to two hundred fifty kcmil and features one bolt hole for secure connections.

• Manufactured from strong 6061-T6 aluminum alloy
• Designed with bossed holes to prevent rotation
• Suitable for both aluminum and copper conductors

Product Highlights

This product is versatile for various electrical applications and ensures reliability and low contact resistance.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Part Number: CA6RP

Technical Specifications

• Application: Tap Connector Applications
• Conductor Size: 6 AWG to 250 kcmil
• Conductor Type: Aluminum/Copper
• Dimensions: 1 in L x 13/16 in W x 1 in H
• Finish: Electro-Plated Tin
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 1
• Series: CA Series
• Specifications: 5/16 in Hex, 1/4-20 Boss Mounting Hole Tapped
• Voltage Rating: 2000 VAC
• Temperature Rating: 75 deg C
• Standards/Approvals: CSA File No. LR-29601 | UL 486A-B File No. E6207 | UL Recognized | ECCN EAR99
