ECM Industries BGC-1DB ILSCO BRZ MEC 10-2 (1/2,3/4,1) UL CSA DB

Product Description

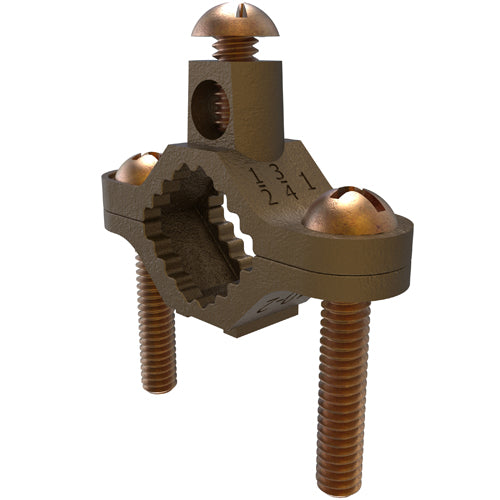

The ILSCO BGC-1DB Ground Rod Clamp is designed for secure connections in grounding applications. This clamp works with pipes ranging from one-half to one inch in size and accommodates copper conductors from ten to two AWG. It is constructed from cast brass for effective conductivity and durability.

• Suitable for direct burial in earth or concrete.
• Compatible with swimming pool and spa grounding systems.
• Includes stainless steel or silicon bronze hardware.

Product Highlights

This grounding clamp is reliable and easy to install, providing robust performance for electrical grounding tasks.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: BGC-1DB

Technical Specifications

• Application: For grounding connector
• Conductor Size: 10 to 2 AWG
• Conductor Type: Copper
• Dimensions: 2-9/32 inches L x 1-7/16 inches W x 1-1/2 inches H
• Includes: Bronze Hardware
• Material: Cast Brass
• Pipe Size: 1/2 to 1 inch
• Standards/Approvals: UL 8M24/467/E158587, CSA LR701570, PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Type: Type BGC
