ECM Industries AU-600 ILSCO AL MEC (2)600-2 17/32 T UL CSA

Product Description

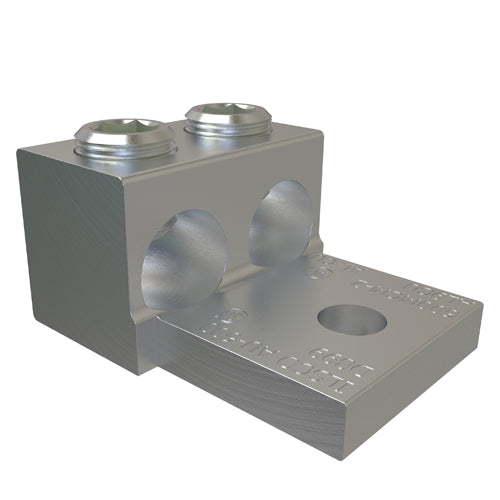

The ILSCO® ClearChoice® AU-600 is a mechanical terminal lug. This dual-rated terminal accommodates aluminum and copper conductors. The lug supports conductor sizes from 2 AWG up to 600 kcmil. It features a 1/2 inch stud and includes two bolt holes for installation. The dimensions are three point one eight seven five inches in length by two point four zero six three inches in width by one point five six two inches in height. This terminal lug is designed for electrical applications up to 2000 VAC.

• Constructed from 6061-T6 aluminum alloy
• Electro-plated tin finish for low contact resistance
• Suitable for use in circuits rated 35 kV or less

Product Highlights

The AU-600 is ideal for terminating connections in various electrical applications, providing reliability for both copper and aluminum conductors.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366900568

Technical Specifications

• Application: Terminating Connector Applications
• Conductor Size: 2 AWG to 600 kcmil
• Conductor Type: Aluminum/Copper
• Dimensions: 3.1875 in L x 2.4063 in W x 1.562 in H
• Finish: Electro-Plated Tin
• Manufacturer Part Number: AU-600
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 2
• Series: AU Series
• Specifications: 1/2 in Hex
• Standards/Approvals: CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99
• Stud Size: 1/2 in
• Temperature Rating: 90 deg C
• Tongue Size: 1.75 in L x 2.006 in W x 0.437 in THK
• Tongue Type: Straight
• Type: 2-Conductor Dual Rated
• Voltage Rating: 2000 VAC
