ECM Industries AU-600-2NS ILSCO AL MEC (2)600-2 9/16-1-3/4 T UL CSA 78366900576

Product Description

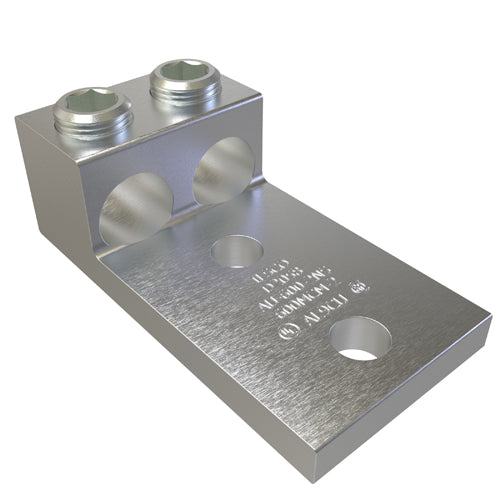

ECM Industries AU-600-2NS is a mechanical terminal lug designed for dual-rated applications. It is suitable for use with aluminum and copper conductors, ranging from 2 AWG to 600 kcmil. This terminal lug features a half-inch stud, two bolt holes, and is made from high-strength 6061-T6 aluminum alloy.

• Rated for voltages up to 2000 VAC.
• Temperature rating of 90 degrees Celsius.
• Chamfered wire entry for easier installation.

Product Highlights

This product provides versatile application capability and reliable connections for electrical systems.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Manufacturer Part Number: AU-600-2NS

Technical Specifications

• Type: 2-Conductor Dual Rated
• Application: Terminating Connector Applications
• Conductor Size: 2 AWG to 600 kcmil
• Conductor Type: Aluminum/Copper
• Dimensions: 4.6875 in L x 2.4063 in W x 1.563 in H
• Finish: Electro-Plated Tin
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 2
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 degrees Celsius
• Tongue Size: 3.313 in L x 2.406 in W x 0.438 in THK
• Tongue Type: Straight
• Stud Size: 1/2 in
• Standards/Approvals: CSA File No. LR-29601 | UL 453G | UL 486A-B File No. E6207 | ECCN EAR99
