ECM Industries AU-350 ILSCO AL MEC (2)350-4 9/16 T UL CSA

Product Description

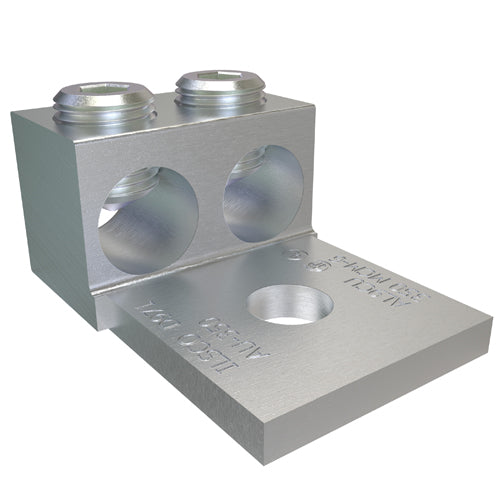

ECM Industries AU-350 is a mechanical terminal lug designed for dual use with aluminum and copper conductors. This product accommodates conductor sizes from six AWG to three hundred fifty kcmil. It features a half inch stud with two bolt holes for secure attachment.

• Conductor size range of 6 AWG to 350 kcmil
• Manufactured from high-strength 6061-T6 aluminum alloy
• Suitable for both copper and aluminum conductors

Product Highlights

This terminal lug ensures reliable connections in electrical systems rated up to two thousand VAC. It is easy to install thanks to its chamfered wire entry and is versatile for various applications.

Product Information

Standard Information

• Brand: ECM Industries
• Manufacturer Part Number: AU-350

Technical Specifications

• Application: Terminating Connector Applications
• Conductor Size: 6 AWG to 350 kcmil
• Conductor Type: Aluminum/Copper
• Dimensions: 2.875 in L x 1.8906 in W x 1.25 in H
• Finish: Electro-Plated Tin
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 2
• Series: AU Series
• Specifications: 5/16 in Hex
• Standards/Approvals: CSA File No. LR-29601, UL 453G, UL 486A-B File No. E6207, ECCN EAR99
• Stud Size: 1/2 in
• Temperature Rating: 90 deg C
• Tongue Size: 1-5/8 in L x 1-3/4 in W x 1/4 in THK
• Tongue Type: Straight
• Type: 2-Conductor Dual Rated
• Voltage Rating: 2000 VAC
