ECM Industries AU-350-2N ILSCO AL MEC (2)350-6 9/16-1-3/4 T UL CSA

Product Description

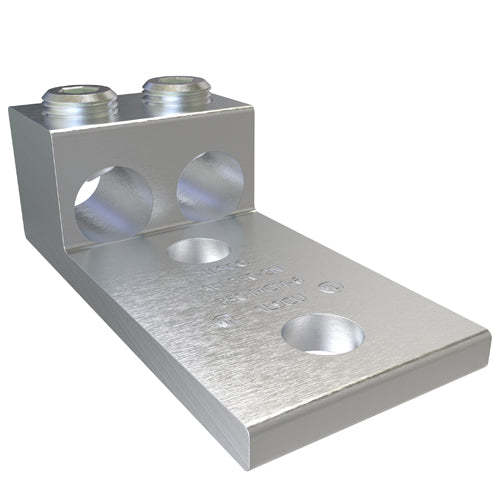

ECM Industries AU-350-2N is a mechanical terminal lug designed for dual-rated conductor use. This unit accommodates aluminum and copper conductors from six AWG to three hundred fifty kcmil. It features a half-inch stud with two bolt holes for secure attachment.

• Compatible with aluminum and copper conductors
• Voltage rating up to two thousand VAC
• Constructed from high-strength 6061-T6 aluminum alloy

Product Highlights

Reliability stems from its robust design and material, making it suitable for various applications in electrical systems while ensuring low contact resistance for effective connectivity.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Type: 2-Conductor Dual Rated

Technical Specifications

• Conductor Size: 6 AWG to 350 kcmil
• Conductor Type: Aluminum/Copper
• Stud Size: 1/2 in
• Dimensions: 4-5/16 in L x 4 in W x 1-3/8 in H
• Temperature Rating: 90 deg C
• Voltage Rating: 2000 VAC
• Material: 6061-T6 Aluminum Alloy
• Series: AU Series
• Number of Bolt Holes: 2
• Finish: Electro-Plated Tin
• Standards/Approvals: CSA File No. LR-29601, UL 453G, UL 486A-B File No. E6207, ECCN EAR99
