ECM Industries AU-250 ILSCO AL MEC (2)250-6 25/64 T UL CSA

Product Description

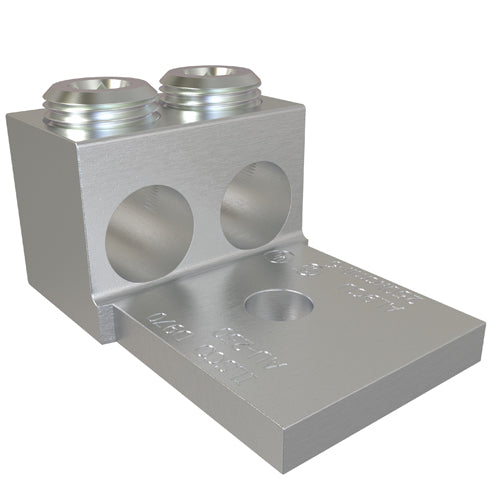

ECM Industries AU-250 is a dual-rated mechanical terminal lug suitable for 2-conductor connections with a gauge range of six AWG to two hundred fifty kcmil. The lug is made from high-strength 6061-T6 aluminum alloy, ensuring durability and reliable conductivity with both aluminum and copper conductors. The design includes two bolt holes for secure mounting and is rated for two thousand volts alternating current.

• Manufactured from durable 6061-T6 aluminum alloy
• Accommodates conductor sizes from six AWG to two hundred fifty kcmil
• Designed for use with both aluminum and copper conductors

Product Highlights

The AU-250 terminal lug is designed for terminating connector applications in electrical systems. Its straight tongue design allows for easy installation and effective electrical connections.

Product Information

Standard Information

• Category: Electrical, Wiring Connectors, Mechanical Connectors & Lugs
• Manufacturer: ECM Industries

Technical Specifications

• Application: Terminating Connector Applications
• Conductor Size: 6 AWG to 250 kcmil
• Conductor Type: Aluminum/Copper
• Dimensions: 2.5675 in L x 1.6563 in W x 1.187 in H
• Finish: Electro-Plated Tin
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 2
• Series: AU Series
• Stud Size: 3/8 in
• Temperature Rating: 90 deg C
• Tongue Size: 1.5 in L x 1.48 in W x 0.25 in THK
• Tongue Type: Straight
• Voltage Rating: 2000 VAC
• Standards/Approvals: CSA File No. LR-29601, UL 453G, UL 486A-B File No. E6207, ECCN EAR99
