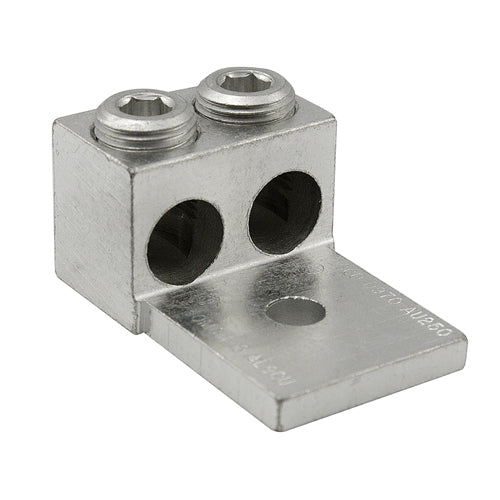

ECM Industries AU-2/0 ILSCO AL MEC (2)2/0-14 17/64 T UL CSA

Product Description

ECM Industries AU-2/0 is a dual-rated mechanical terminal lug designed for aluminum and copper conductors. It supports conductor sizes ranging from fourteen to two ought AWG. This terminal lug features a one-fourth inch stud and accommodates two bolt holes for secure connectivity.

• Compatible with both aluminum and copper conductors
• Manufactured from high-strength 6061-T6 aluminum alloy
• Suitable for use in circuits rated at 2000 VAC

Product Highlights

The AU-2/0 mechanical terminal lug provides reliability for professionals in electrical applications. Its design eases the installation process and ensures secure connections.

Product Information

Standard Information

• Application: Terminating Connector Applications
• Conductor Size: 14 to 2/0 AWG

Technical Specifications

• Conductor Type: Aluminum/Copper
• Dimensions: 1.4688 inches long x 1.25 inches wide x 0.794 inches high
• Finish: Electro-Plated Tin
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 2
• Series: AU Series
• Stud Size: 1/4 inch
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 2000 VAC
