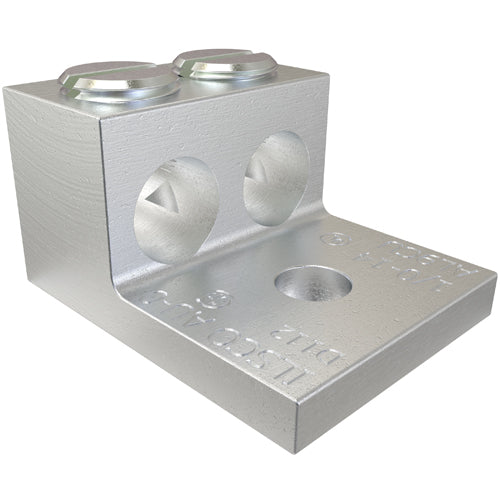

ECM Industries AU-0 ILSCO (1/0-14) 2-HOLE ALUM LUG

Product Description

The ECM Industries AU-0 is a mechanical terminal lug designed for use with aluminum and copper conductors. This product is suitable for conductors ranging from fourteen to one/0 AWG. It features a straight tongue and includes two bolt holes for secure installation.

• Rated for 2000 VAC for safe application.
• Manufactured from high strength 6061-T6 aluminum alloy.
• Electro-tin plated for low contact resistance.

Product Highlights

This dual-rated lug ensures reliability and application versatility in various electrical circuits.

Product Information

Standard Information

• Manufacturer: ECM Industries
• MPN: AU-0

Technical Specifications

• Application: Terminating Connector Applications
• Conductor Size: 14 to 1/0 AWG
• Conductor Type: Aluminum/Copper
• Dimensions: 1.4688 in L x 1.125 in W x 0.794 in H
• Finish: Electro-Plated Tin
• Material: 6061-T6 Aluminum Alloy
• Number of Bolt Holes: 2
• Series: AU Series
• Voltage Rating: 2000 VAC
• Temperature Rating: 90 deg C
• Tongue Size: 0.8438 in L x 1.125 in W x 0.187 in THK
• Stud Size: 1/4 in
