ECM Industries ASN-6 ILSCO AL CMP SLV 6 AWG T UL CSA

Product Description

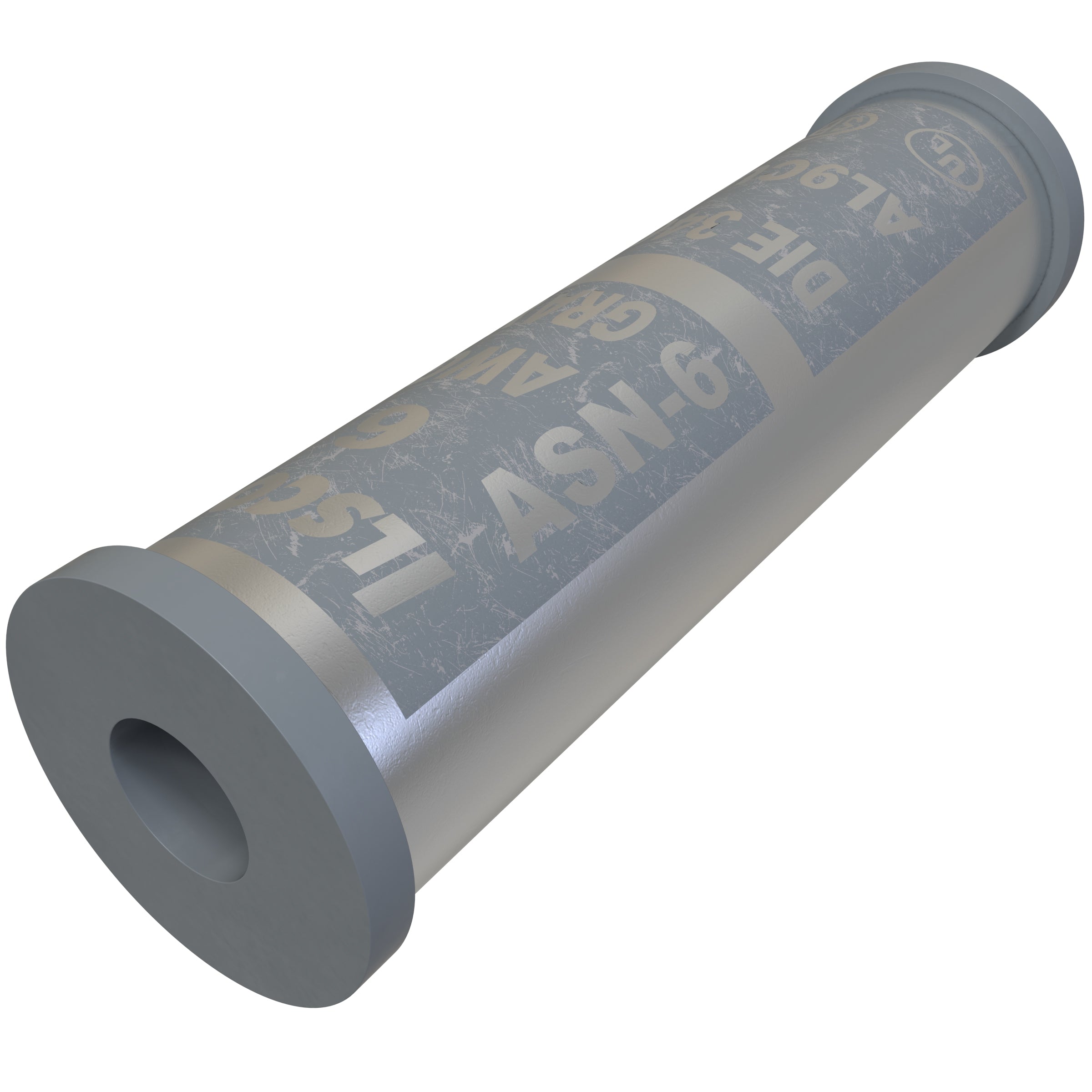

ECM Industries ASN-6 is a ClearChoice Compression Sleeve. It is designed for both aluminum and copper conductors. This dual-rated connector can accommodate a six AWG conductor with a length of one point two zero five inches. The product meets high voltage specifications up to thirty-five kV and operates at a maximum temperature of ninety degrees Celsius.

• Dual-rated for aluminum and copper conductor
• Constructed from aluminum alloy for optimal conductivity
• Easy conductor insertion with chamfered entry

Product Highlights

Ideal for high voltage applications and offers excellent crimping characteristics. It features an electro-plated tin finish to reduce contact resistance.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 78366918472

Technical Specifications

• Application: For use with splicer and reducer
• Color: Gray
• Conductor Size: 6 AWG
• Conductor Type: Aluminum/Copper
• Connector Type: Crimp
• Die Code: 346
• Dimensions: 0.194 in ID x 0.338 in OD
• Finish: Electro-Plated Tin
• Length: 1.205 in
• Material: Aluminum
• Standards/Approvals: CSA File No. LR-29601|UL 486A-B File No. E6207 453G|ECCN EAR99|PROP65: Cancer - www.p65warnings.ca.gov
• Temperature Rating: 90 deg C
• Type: Type ASN Dual Rated
• Voltage Rating: 35 kV
