ECM Industries ASN-4 ILSCO AL CMP SLV 4 AWG T UL CSA

Product Description

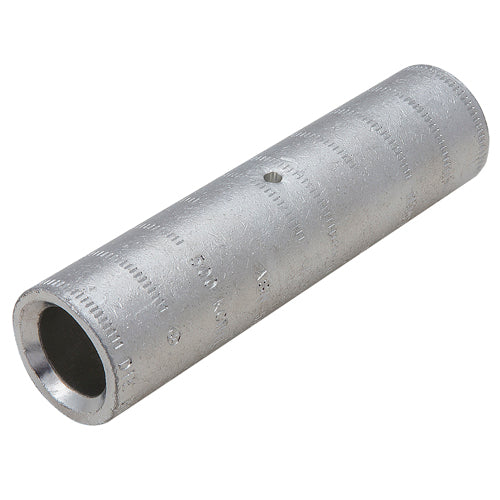

The ECM Industries ASN-4 is an ILSCO ClearChoice SureCrimp Compression Sleeve suitable for dual-rated applications. This compression sleeve is designed for use with both copper and aluminum conductors in sizes ranging from six to four AWG. It features a length of two point two two inches and is made from high-strength aluminum alloy. The product is electro tin plated, enhancing its conductivity and allowing for low contact resistance.

• Compatible with both copper and aluminum conductors.
• Designed for easy insertion with a chamfered entry.
• Identifies correct compression die with a color-coded end cap.

Product Highlights

The ASN-4 Compression Sleeve is ideal for splicer/reducer applications, ensuring solid electrical connections in various installations.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Product Name: ASN-4 ILSCO AL CMP SLV 4 AWG T UL CSA

Technical Specifications

• Application: Splicer/Reducer Applications
• Color: Green
• Conductor Size: 6 to 4 AWG
• Conductor Type: Copper/Aluminum
• Die Code: 375
• Dimensions: 0.247 in ID x 0.427 in OD
• Finish: Electro Tin Plated
• Length: 2.222 in
• Material: Aluminum Alloy
• Standards/Approvals: UL 486 A/B/453G File No. E6207 | CSA File No. LR29601
• Temperature Rating: 90 deg C
• Type: Type ASN Dual Rated
